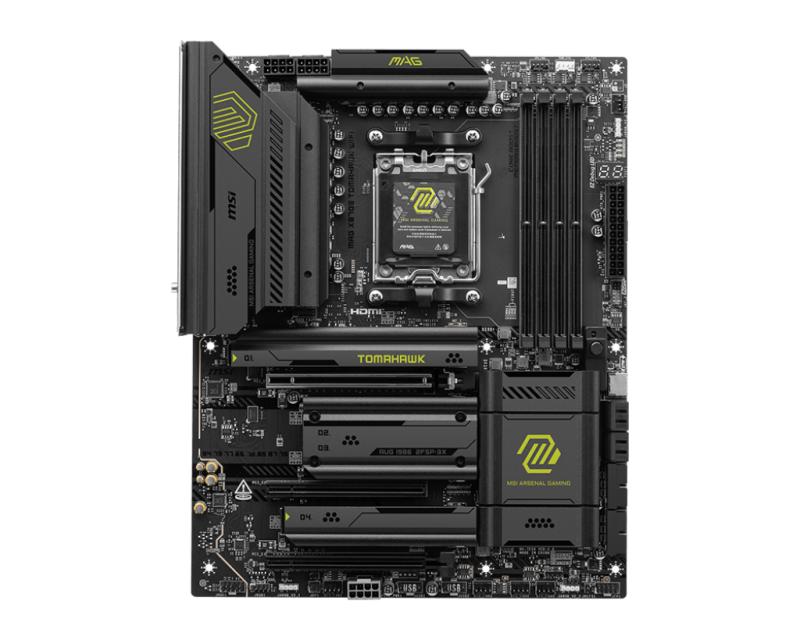

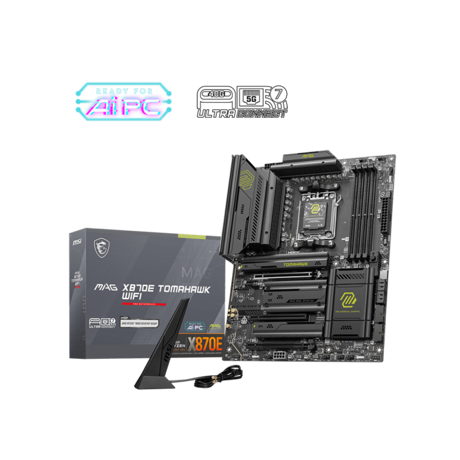

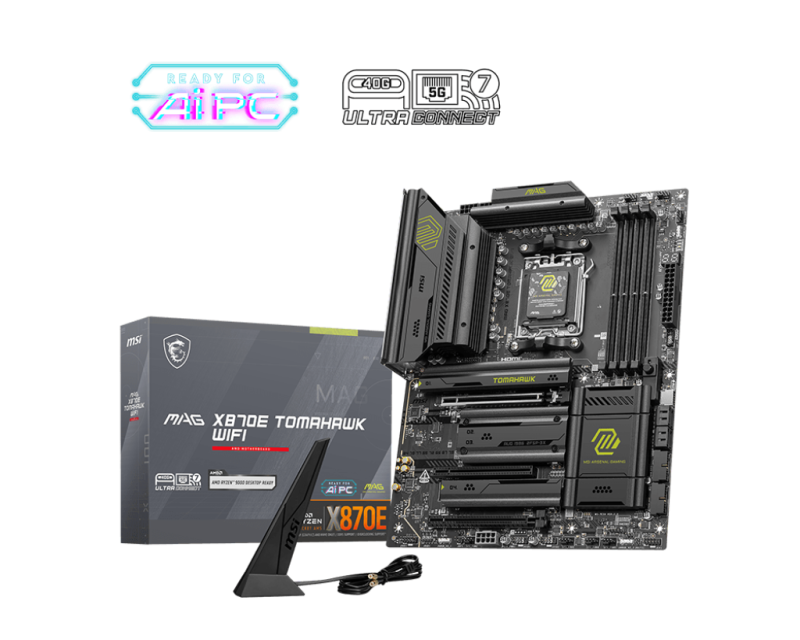

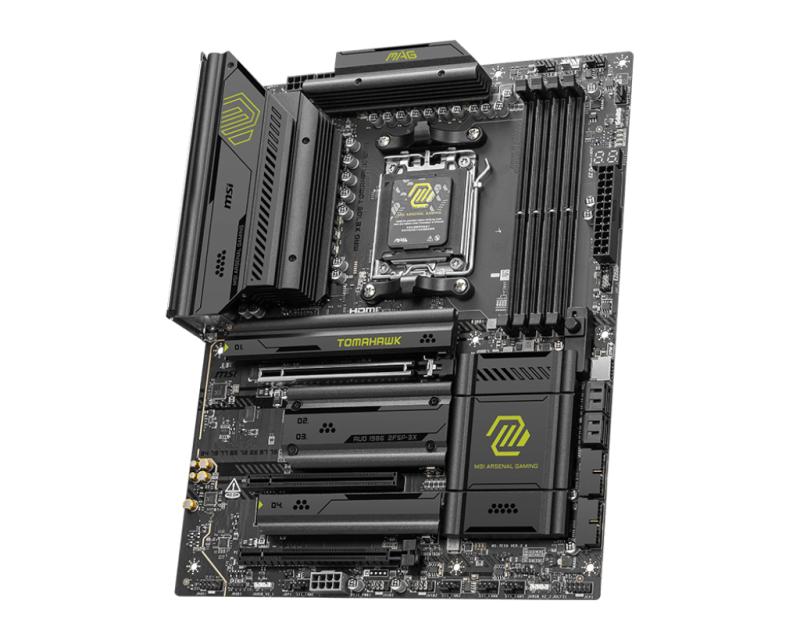

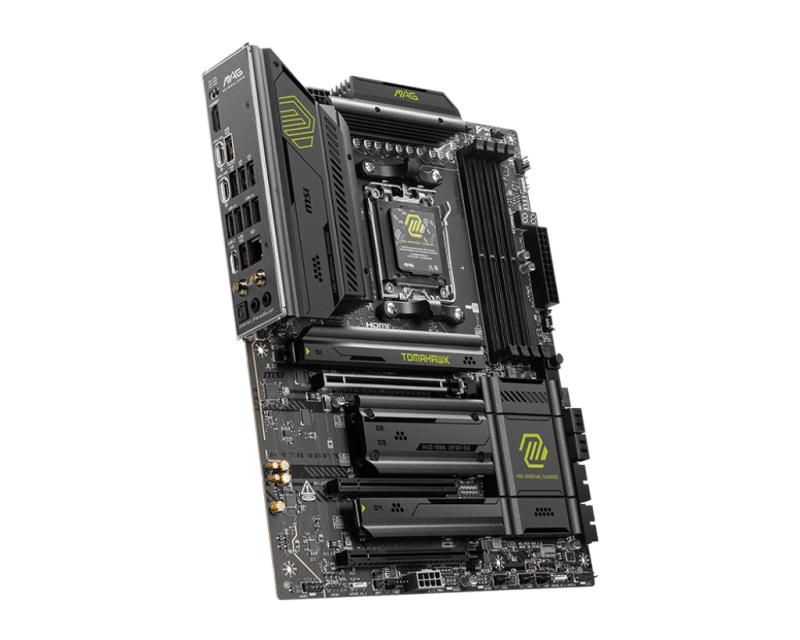

Placa de Baza MSI MAG X870E TOMAHAWK WIFI AM5, 4x DDR5, 1x HDMI 2x Type- C DP, 3x PCIE x16, 4x M.2, 4x SATA 6GB/s, ATX

Placa de Baza MSI MAG X870E TOMAHAWK WIFI AM5, 4x DDR5, 1x HDMI 2x Type- C DP, 3x PCIE x16, 4x M.2, 4x SATA 6GB/s, ATX

Product colour

Black

PCI Express x16 (Gen 3.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

1st M.2 highest PCI Express generation

5.0

3rd M.2 highest PCI Express generation

4.0

Number of M.2 (M) slots

4

2nd M.2 largest key size

2280

3rd M.2 largest key size

2280

4th M.2 largest key size

2280

4th M.2 highest PCI Express generation

4.0

2nd M.2 highest PCI Express generation

5.0

1st M.2 largest key size

22110

Motherboard chipset

AMD X870E

PC health monitoring

CPU, Fan, Temperature, Voltage

Motherboard form factor

ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Component for

PC

On-board graphics card

No

Total number of SATA connectors

4

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of SATA connectors

0

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

ECC сompatibility

Non-ECC

Number of memory slots

4

Memory slots type

DIMM

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Memory channels

Dual-channel

Supported memory clock speed (max)

8400 MHz

Supported memory clock speeds

4800,5600,8400 MHz

LAN controller

Realtek RTL8126

BLUETOOTH

Yes

Ethernet LAN

Yes

Wi-Fi

Yes

Bluetooth version

5.4

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Ethernet interface type

5 Gigabit Ethernet

mSATA ports quantity

0

DVI-D ports quantity

0

DisplayPorts quantity

2

DisplayPort version

1.4

HDMI ports quantity

1

HDMI version

2.1

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Maximum internal memory supported by processor

256 GB

Microphone in

Yes

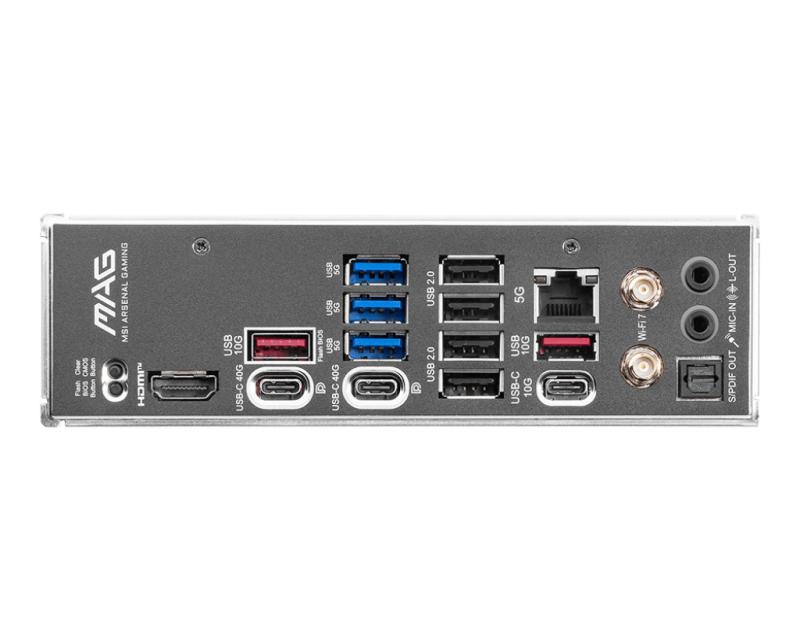

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 2.0 ports quantity

4

S/PDIF out port

Yes

USB4 Gen 2x2 ports quantity

1

VGA (D-Sub) ports quantity

0

Ethernet LAN (RJ-45) ports

1

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

Number of HDDs supported

4

Number of storage drives supported

8

Width

243.8 mm

Depth

304.8 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
