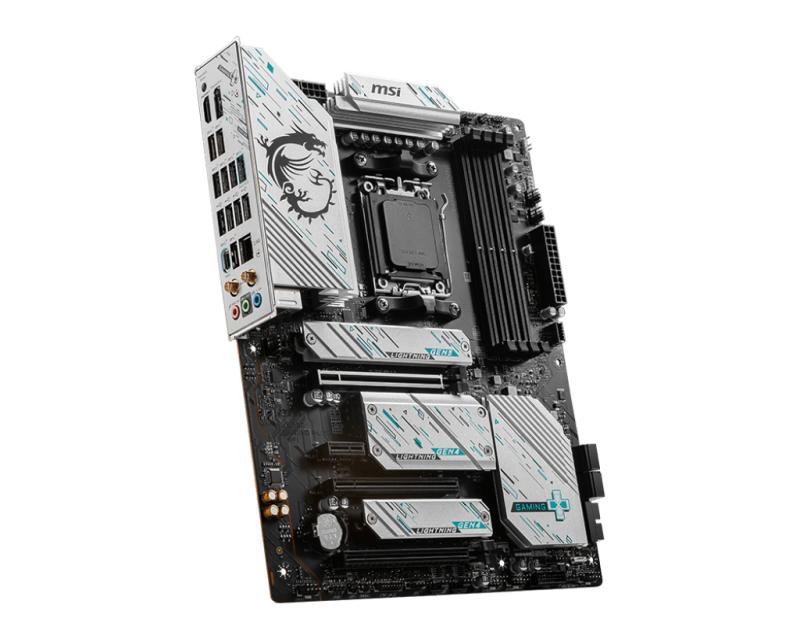

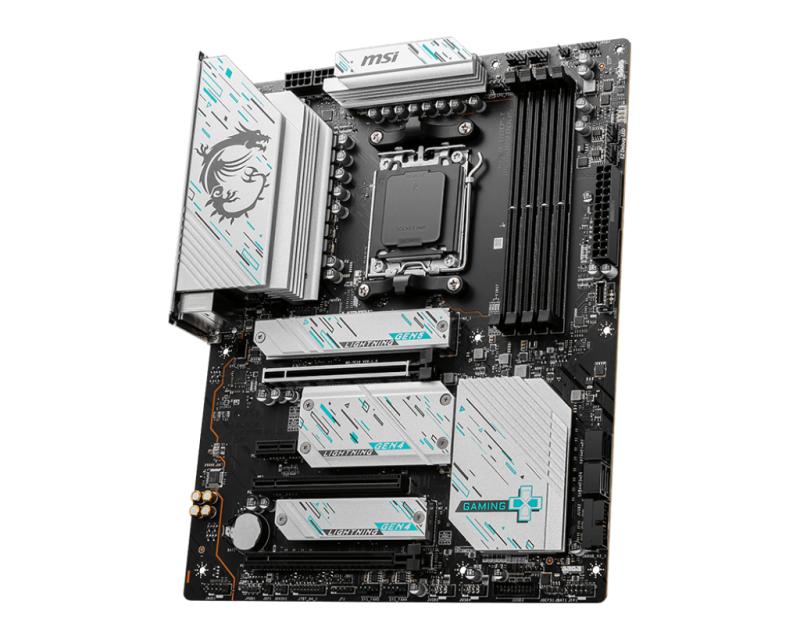

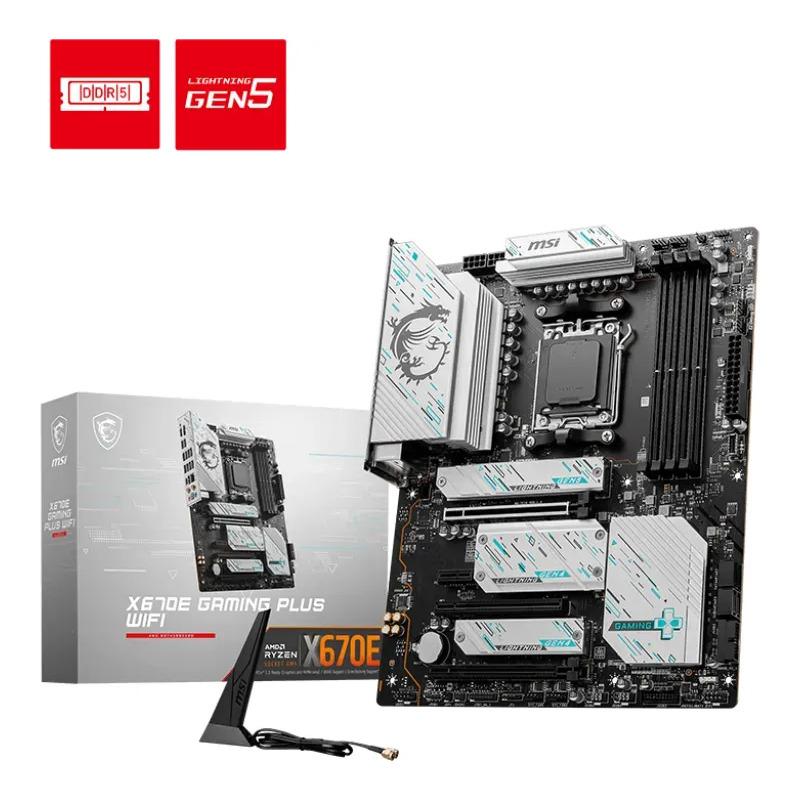

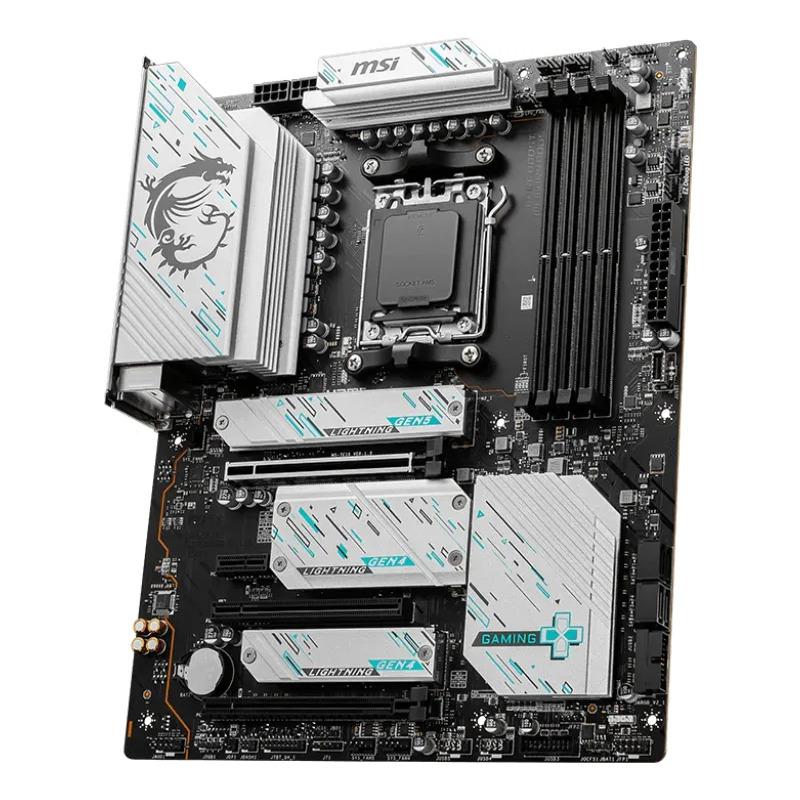

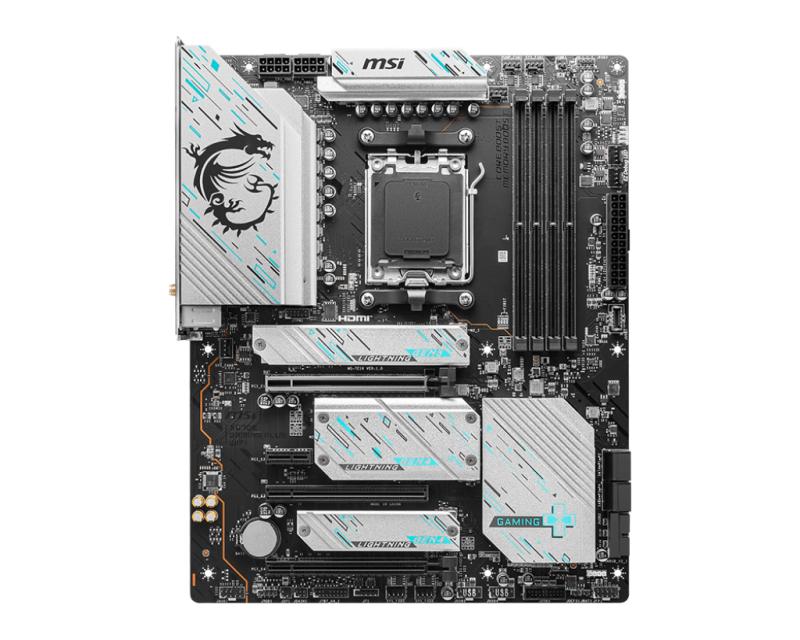

Placa de Baza MSI X670E GAMING PLUS WIFI AM5

Placa de Baza MSI X670E GAMING PLUS WIFI AM5, 4x DDR5, 1x HDMI 1x DP, 3x PCIE x16 1x PCIE x1, 4x M.2, 4x SATA 6GB/s, ATX

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

ACPI version

6.4

System Management BIOS (SMBIOS) version

3.5

Product colour

Aluminium, Black

PCI Express x16 (Gen 5.x) slots

2

Number of M.2 (M) slots

4

PCI Express x16 (Gen 4.x) slots

1

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Audio output channels

7.1 channels

Audio Chip

Realtek ALC897

Component for

PC

Motherboard chipset

AMD X670

Motherboard form factor

ATX

Motherboard chipset family

AMD

On-board graphics card

No

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of SATA connectors

0

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

ECC сompatibility

Non-ECC

Supported memory types

DDR5-SDRAM

Maximum internal memory

192 GB

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

BLUETOOTH

Yes

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN

Yes

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Wi-Fi

Yes

Bluetooth version

5.3

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125-BG

mSATA ports quantity

0

HDMI version

2.1

DisplayPorts quantity

1

DisplayPort version

1.4

HDMI ports quantity

1

Processor manufacturer

AMD

Processor socket

Socket AM5

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB 2.0 ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Ethernet LAN (RJ-45) ports

1

S/PDIF out port

Yes

Supported storage drive interfaces

M.2, SATA III

RAID support

Yes

RAID levels

0, 1, 10

Width

243.8 mm

Depth

304.8 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
