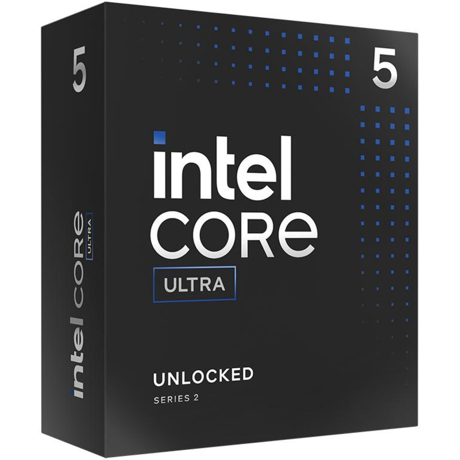

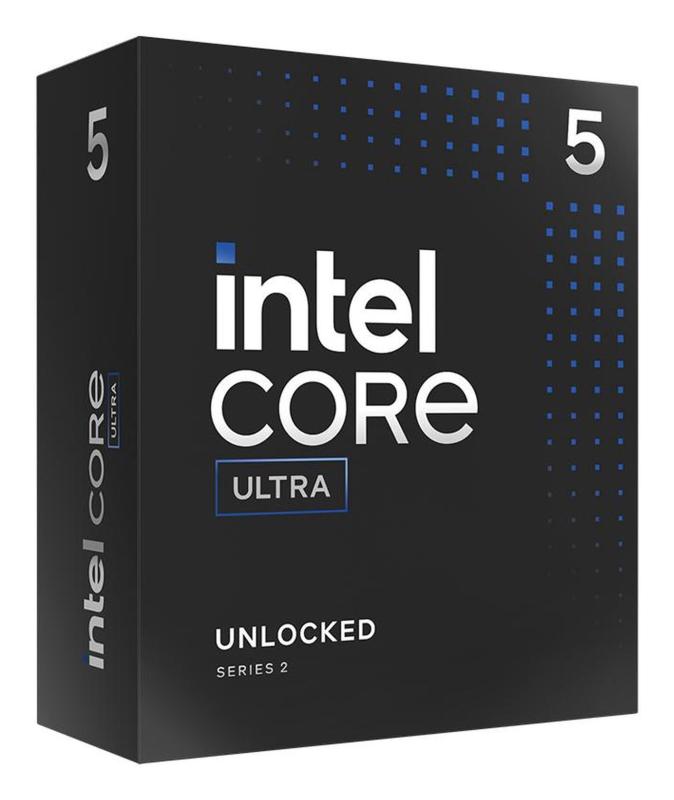

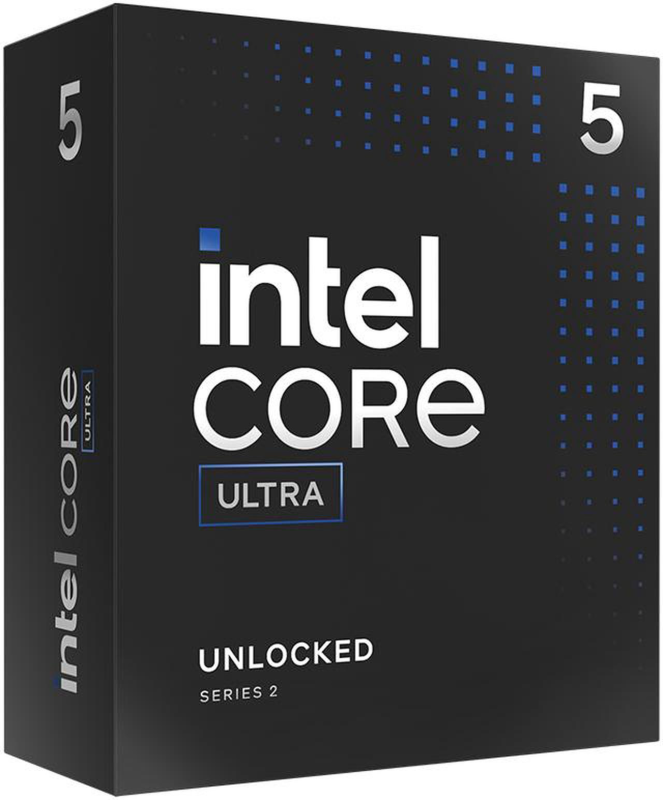

Procesor INTEL CORE ULTRA 5 245K pana la 5.2GHz LGA1851, 14 cores 20 thrads, Intel Smart Cache 24MB , L2 Cache 26MB

Procesor INTEL CORE ULTRA 5 245K pana la 5.2GHz LGA1851, 14 cores 20 thrads, Intel Smart Cache 24MB , L2 Cache 26MB

Embedded options available

No

Execute Disable Bit

Yes

Idle States

Yes

Thermal Monitoring Technologies

Yes

Supported instruction sets

AVX 2.0, SSE4.1, SSE4.2

Scalability

1S

Direct Media Interface (DMI) Revision

4.0

Export Control Classification Number (ECCN)

5A992C

Commodity Classification Automated Tracking System (CCATS)

740.17B1

PCI Express slots version

4.0, 5.0

Market segment

Desktop

Use conditions

Workstation, PC/Client/Tablet

Thermal solution specification

PCG 2020A

Maximum number of PCI Express lanes

24

On-board graphics card outputs supported

DisplayPort 2.1, Embedded DisplayPort (eDP) 1.4b, HDMI 2.1

On-board graphics card ID

0x7D67

Xe-cores

4

On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)

60 Hz

On-board graphics card dynamic frequency (max)

1900 MHz

On-board graphics card base frequency

300 MHz

Number of displays supported (on-board graphics)

4

On-board graphics card refresh rate at maximum resolution (DisplayPort)

60 Hz

On-board graphics card refresh rate at maximum resolution (HDMI)

60 Hz

On-board graphics card DirectX version

12.0

On-board graphics card OpenGL version

4.5

On-board graphics card

Yes

Discrete graphics card

No

Discrete graphics card model

Not available

On-board graphics card model

Intel Graphics

Harmonized System (HS) code

8542310050

Memory clock speeds supported by processor

6400 MHz

Memory channels

Dual-channel

Maximum internal memory supported by processor

192 GB

Memory types supported by processor

DDR5-SDRAM

Neural processor unit (NPU)

Intel AI Boost

Sparsity support

Yes

Windows Studio effects support

Yes

AI software frameworks supported by NPU

DirectML, OpenVINO, Windows ML, ONNX RT, WebNN

Total processor performance up to

30 TOPs

NPU performance up to

13 TOPs

GPU performance up to

8 TOPs

Maximum operating temperature

105 °C

L2 cache

26624 KB

Graphics output

DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b

Maximum internal memory

192 GB

Box

Yes

Cooler included

No

Stepping

B0

Maximum number of DMI lanes

8

Processor cores

14

Processor boost frequency

5.2 GHz

Processor manufacturer

Intel

Efficient cores

8

Processor cache type

Smart Cache

Performance cores

6

Processor cache

24 MB

Processor base power

125 W

Processor family

Intel Core Ultra 5

Performance-core boost frequency

5.2 GHz

Processor operating modes

64-bit

Processor socket

FCLGA1851

Processor model

245K

Processor generation

Intel Core Ultra (Series 2)

Performance-core base frequency

4.2 GHz

Efficient-core boost frequency

4.6 GHz

Efficient-core base frequency

3.6 GHz

Maximum turbo power

159 W

AI software frameworks supported by CPU

DirectML, OpenVINO, Windows ML, ONNX RT, WebNN

Processor codename

Arrow Lake

Processor ARK ID

241067

Intel® Remote Platform Erase (RPE)

Yes

Intel® Deep Learning Boost (Intel® DL Boost) on GPU

Yes

Intel® Thunderbolt 4

Yes

Intel® Turbo Boost Technology

2.0

Enhanced Intel SpeedStep Technology

Yes

Intel® Quick Sync Video Technology

Yes

Intel® AES New Instructions (Intel® AES-NI)

Yes

Intel® Secure Key

Yes

Intel® OS Guard

Yes

Intel 64

Yes

Intel VT-x with Extended Page Tables (EPT)

Yes

Intel Trusted Execution Technology

Yes

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel Virtualization Technology (VT-x)

Yes

Intel® Stable IT Platform Program (SIPP)

Yes

Intel® Active Management Technology (Intel® AMT)

Yes

Intel® One-Click Recovery

Yes

Intel® Virtualization Technology with Redirect Protection (VT-rp)

Yes

Intel vPro® Enterprise Platform Eligibility

Yes

Intel® Threat Detection Technology (TDT)

Yes

Intel® Hardware Shield Eligibility

Yes

Intel® Total Memory Encryption - Multi Key

Yes

Intel® Speed Shift Technology

Yes

Intel® Control-flow Enforcement Technology (CET)

Yes

Intel® Thread Director

Yes

Intel® Boot Guard

Yes

Intel® Deep Learning Boost (Intel® DL Boost) on CPU

Yes

Intel® Volume Management Device (VMD)

Yes

Mode-based Execute Control (MBE)

Yes

Intel® Standard Manageability (ISM)

Yes

Status

Launched

OpenCL version

3.0

Launch date

Q4'24

Memory speed (max)

6400 MHz
