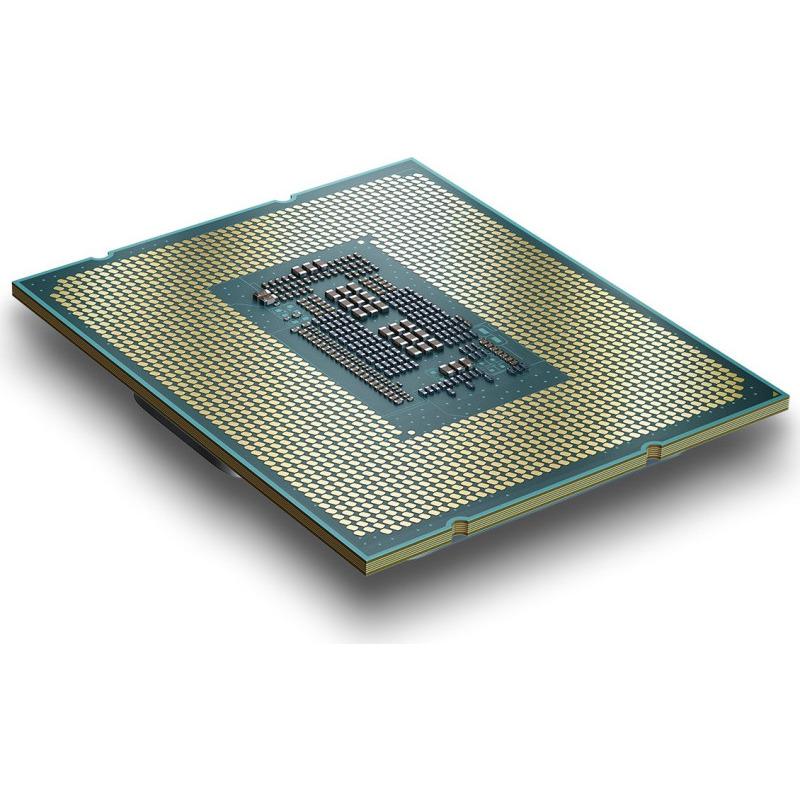

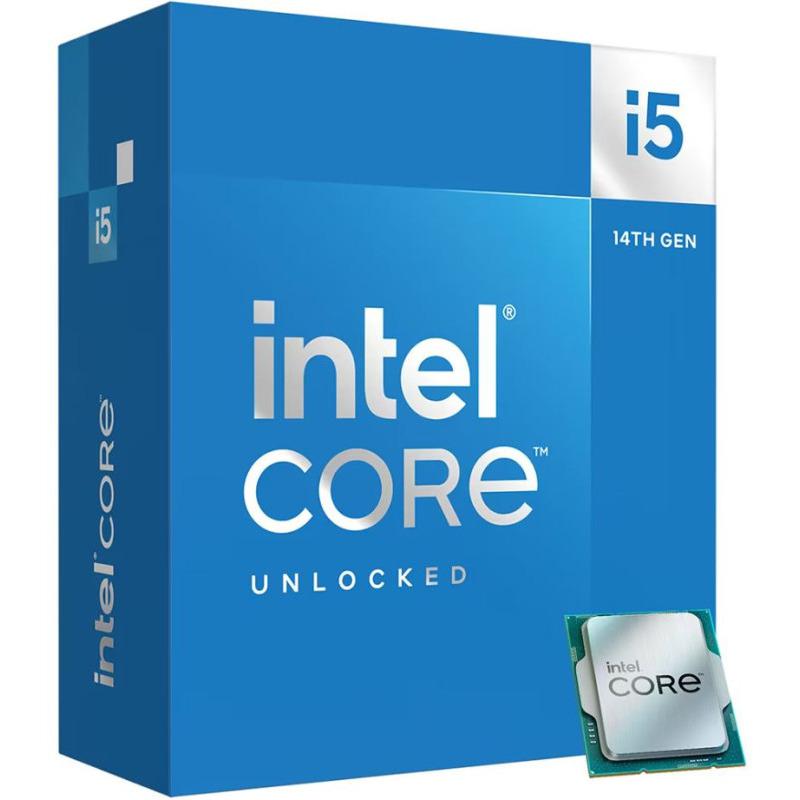

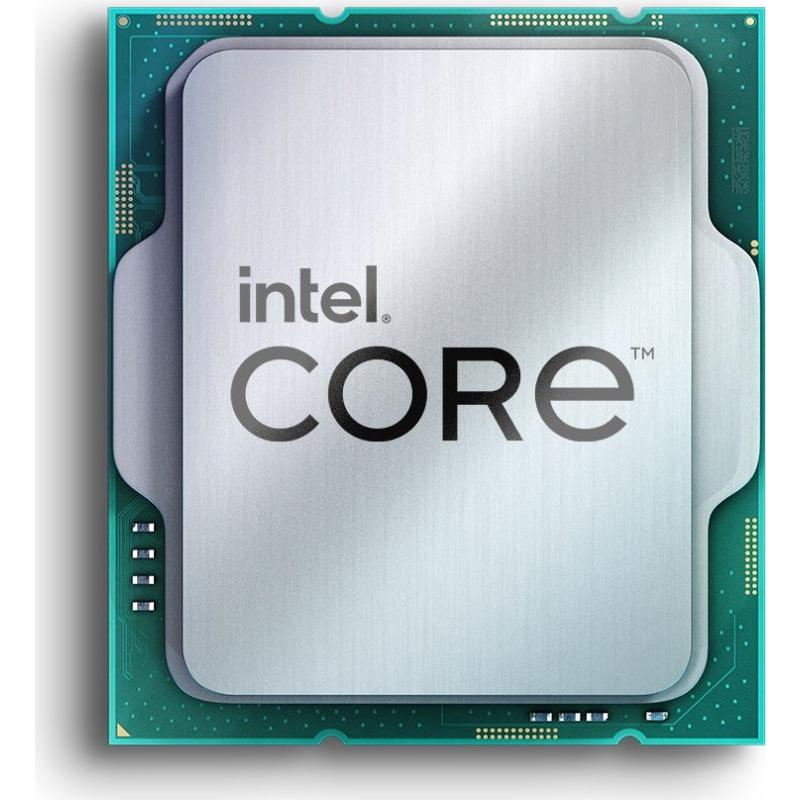

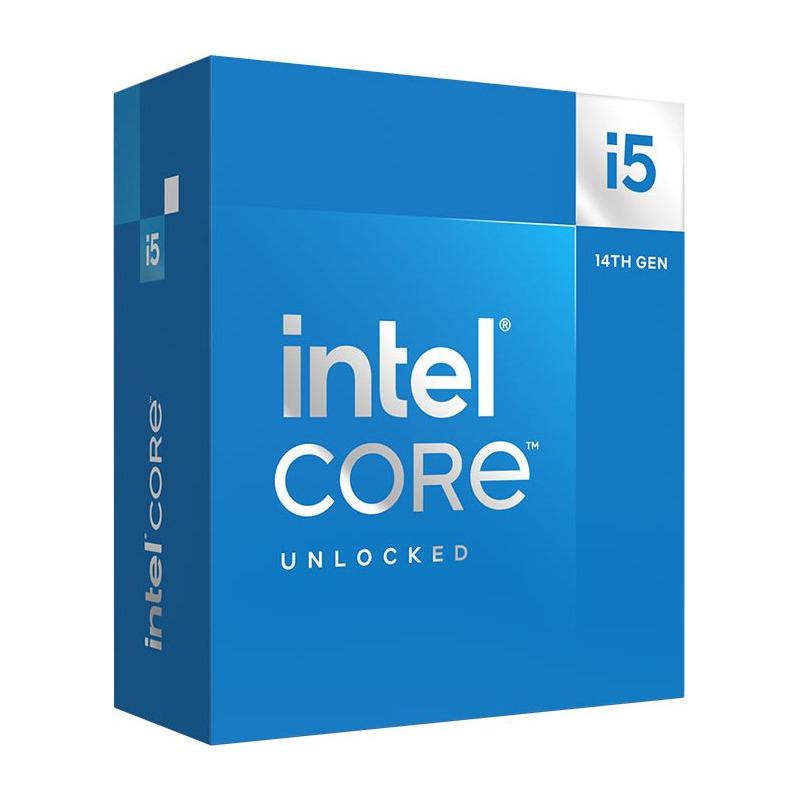

Procesor Intel Core i5-14600K Raptor Lake 3.5GHz LGA1700

Procesor Intel Core i5-14600K Raptor Lake 3.5GHz max. 5.3GHz, 14 cores, 24MB Intel Smart Cache, L2 Cache 20MB, 125W max. 181W

CPU configuration (max)

1

Embedded options available

No

Execute Disable Bit

Yes

Idle States

Yes

Thermal Monitoring Technologies

Yes

Supported instruction sets

AVX 2.0, SSE4.1, SSE4.2

Market segment

Desktop

Maximum number of PCI Express lanes

20

PCI Express configurations

1x16+1x4, 2x8+1x4

Scalability

1S

Direct Media Interface (DMI) Revision

4.0

Export Control Classification Number (ECCN)

5A992C

Commodity Classification Automated Tracking System (CCATS)

740.17B1

PCI Express slots version

4.0, 5.0

Thermal solution specification

PCG 2020A

Use conditions

Workstation, PC/Client/Tablet

On-board graphics card ID

0xA780

On-board graphics card outputs supported

Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1

On-board graphics card base frequency

300 MHz

On-board graphics card dynamic frequency (max)

1550 MHz

Number of displays supported (on-board graphics)

4

On-board graphics card maximum resolution (DisplayPort)

7680 x 4320 pixels

On-board graphics card maximum resolution (eDP - Integrated Flat Panel)

5120 x 3200 pixels

On-board graphics card maximum resolution (HDMI)

4096 x 2160 pixels

On-board graphics card refresh rate at maximum resolution (DisplayPort)

60 Hz

On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)

120 Hz

On-board graphics card refresh rate at maximum resolution (HDMI)

60 Hz

Number of execution units

32

Multi-Format Codec Engines

2

On-board graphics card model

Intel UHD Graphics 770

On-board graphics card DirectX version

12.0

On-board graphics card OpenGL version

4.5

On-board graphics card

Yes

Discrete graphics card

No

Discrete graphics card model

Not available

Harmonized System (HS) code

8542310001

Maximum internal memory supported by processor

192 GB

Memory types supported by processor

DDR4-SDRAM, DDR5-SDRAM

Memory bandwidth (max)

89.6 GB/s

Memory channels

Dual-channel

Non-ECC

Yes

Tjunction

100 °C

Maximum internal memory

192 GB

L2 cache

20480 KB

Graphics output

eDP 1.4b, DP 1.4a, HDMI 2.1

Performance-core base frequency

3.5 GHz

Stepping

B0

Efficient-core base frequency

2.6 GHz

Maximum turbo power

181 W

Performance-core boost frequency

5.3 GHz

Processor model

i5-14600K

Processor ARK ID

236799

Maximum number of DMI lanes

8

Memory bandwidth supported by processor (max)

89.6 GB/s

Processor codename

Raptor Lake

Box

Yes

Cooler included

No

Processor socket

LGA 1700

Processor family

Intel® Core™ i5

Processor boost frequency

5.3 GHz

Processor threads

20

Processor generation

Intel® Core™ i5 (14th gen)

Processor base power

125 W

Processor cores

14

Processor operating modes

64-bit

Processor manufacturer

Intel

Efficient cores

8

Processor cache type

Smart Cache

Performance cores

6

Processor cache

24 MB

Efficient-core boost frequency

4 GHz

Intel VT-x with Extended Page Tables (EPT)

Yes

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel Virtualization Technology (VT-x)

Yes

Intel® Hyper Threading Technology (Intel® HT Technology)

Yes

Enhanced Intel SpeedStep Technology

Yes

Intel® Quick Sync Video Technology

Yes

Intel® AES New Instructions (Intel® AES-NI)

Yes

Intel® Secure Key

Yes

Intel® OS Guard

Yes

Intel 64

Yes

Intel® Turbo Boost Technology

2.0

Intel® Clear Video HD Technology (Intel® CVT HD)

Yes

Intel® Speed Shift Technology

Yes

Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0

Yes

Intel® Control-flow Enforcement Technology (CET)

Yes

Intel® Thread Director

Yes

Intel® Boot Guard

Yes

Intel® Deep Learning Boost (Intel® DL Boost) on CPU

Yes

Intel® Volume Management Device (VMD)

Yes

Mode-based Execute Control (MBE)

Yes

Intel® Standard Manageability (ISM)

Yes

OpenCL version

3.0

Status

Launched

Launch date

Q4'23

Processor package size

45 x 37.5 mm
