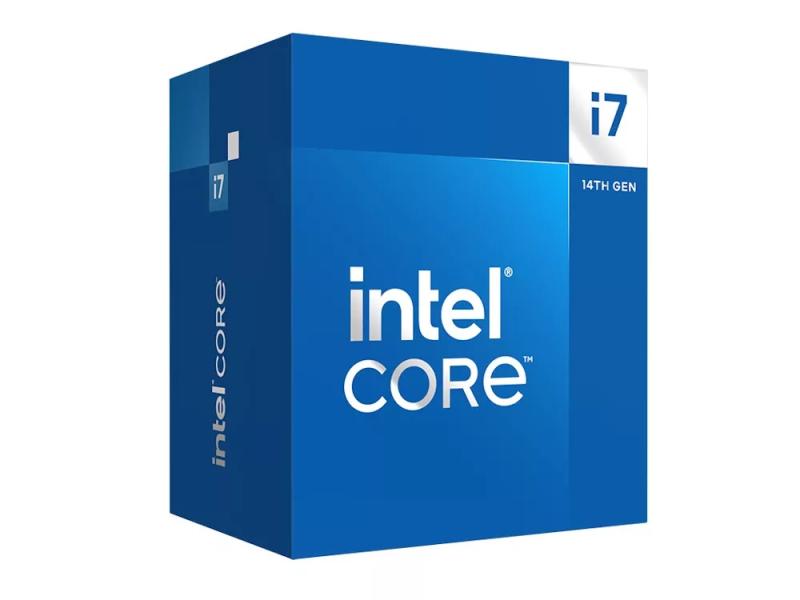

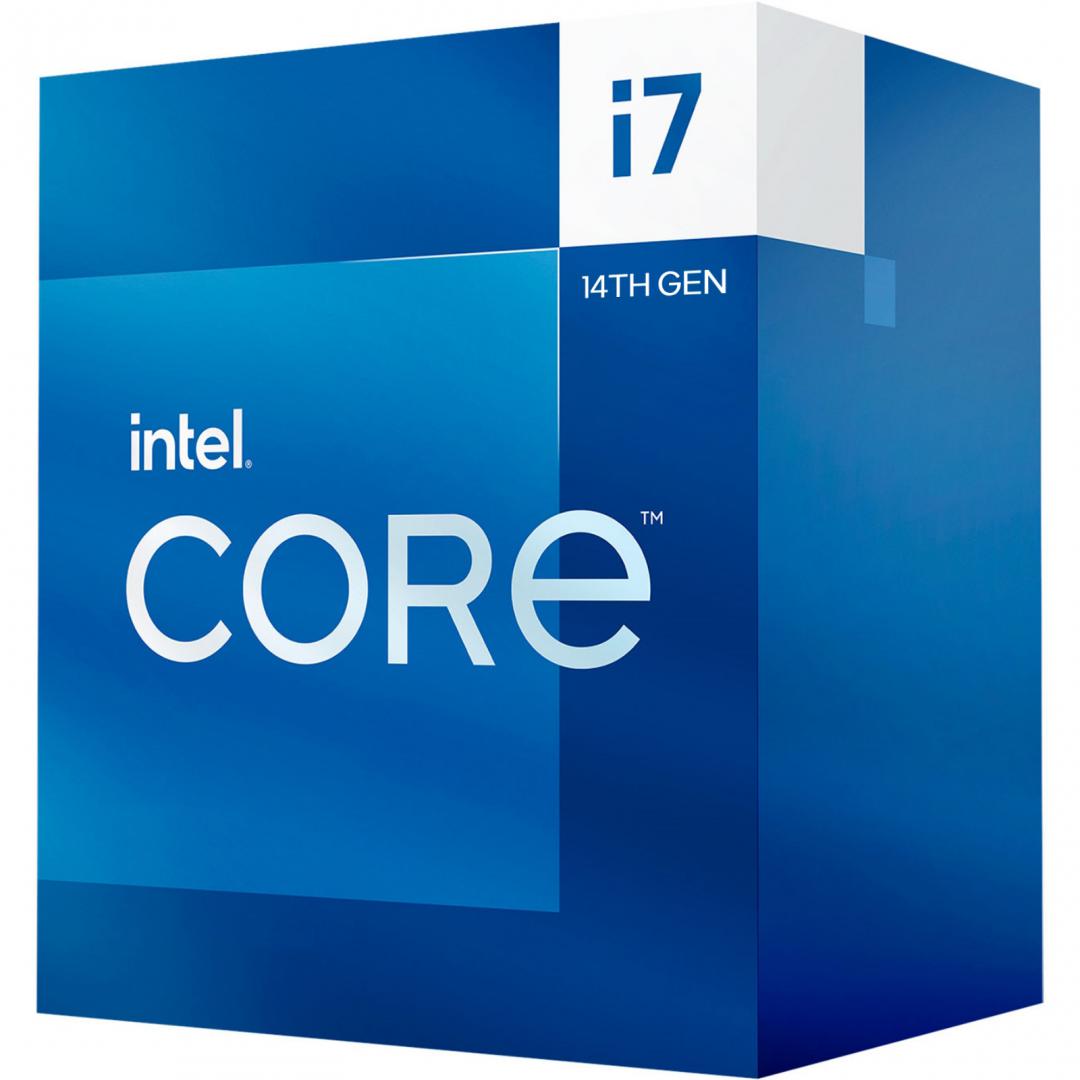

Procesor Intel Core i7-14700 Raptor Lake 2.1 GHz LGA1700

Procesor Intel Core i7-14700 Raptor Lake 2.1 GHz, max. 5.4 GHz, 20 cores, 33MB Intel Smart Cache, L2 Cache 28MB, 65W max. 219W

CPU configuration (max)

1

Thermal Monitoring Technologies

Yes

Execute Disable Bit

Yes

Idle States

Yes

Supported instruction sets

AVX 2.0, SSE4.1, SSE4.2

Maximum number of PCI Express lanes

20

PCI Express configurations

1x16+1x4, 2x8+1x4

Scalability

1S

Direct Media Interface (DMI) Revision

4.0

Export Control Classification Number (ECCN)

5A992C

Commodity Classification Automated Tracking System (CCATS)

740.17B1

Embedded options available

Yes

Market segment

Desktop

PCI Express slots version

4.0, 5.0

Use conditions

Workstation, PC/Client/Tablet

On-board graphics card outputs supported

Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1

On-board graphics card base frequency

300 MHz

Number of displays supported (on-board graphics)

4

On-board graphics card maximum resolution (DisplayPort)

7680 x 4320 pixels

On-board graphics card maximum resolution (eDP - Integrated Flat Panel)

5120 x 3200 pixels

On-board graphics card maximum resolution (HDMI)

4096 x 2160 pixels

On-board graphics card refresh rate at maximum resolution (DisplayPort)

60 Hz

On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)

120 Hz

On-board graphics card refresh rate at maximum resolution (HDMI)

60 Hz

Number of execution units

32

Multi-Format Codec Engines

2

On-board graphics card dynamic frequency (max)

1600 MHz

On-board graphics card ID

0xA780

On-board graphics card model

Intel UHD Graphics 770

On-board graphics card

Yes

Discrete graphics card

No

Discrete graphics card model

Not available

On-board graphics card DirectX version

12.0

On-board graphics card OpenGL version

4.5

Harmonized System (HS) code

8542310001

Memory types supported by processor

DDR4-SDRAM, DDR5-SDRAM

Memory bandwidth (max)

89.6 GB/s

Maximum internal memory supported by processor

192 GB

Memory channels

Dual-channel

Tjunction

100 °C

Maximum internal memory

192 GB

L2 cache

28672 KB

Graphics output

eDP 1.4b, DP 1.4a, HDMI 2.1

Processor socket

LGA 1700

Performance-core boost frequency

5.3 GHz

Efficient-core boost frequency

4.2 GHz

Processor ARK ID

236781

Stepping

B0

Box

Yes

Processor model

i7-14700

Cooler included

Yes

Maximum number of DMI lanes

8

Memory bandwidth supported by processor (max)

89.6 GB/s

Processor codename

Raptor Lake

Processor manufacturer

Intel

Processor cache type

Smart Cache

Processor base power

65 W

Maximum turbo power

219 W

Processor boost frequency

5.4 GHz

Processor operating modes

64-bit

Processor family

Intel® Core™ i7

Performance cores

8

Processor generation

Intel® Core™ i7 (14th gen)

Processor cores

20

Processor threads

28

Efficient cores

12

Performance-core base frequency

2.1 GHz

Efficient-core base frequency

1.5 GHz

Processor cache

33 MB

Intel® Turbo Boost Technology

2.0

Intel® Clear Video HD Technology (Intel® CVT HD)

Yes

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel Virtualization Technology (VT-x)

Yes

Intel VT-x with Extended Page Tables (EPT)

Yes

Intel® Hyper Threading Technology (Intel® HT Technology)

Yes

Enhanced Intel SpeedStep Technology

Yes

Intel® Quick Sync Video Technology

Yes

Intel® AES New Instructions (Intel® AES-NI)

Yes

Intel® Secure Key

Yes

Intel® OS Guard

Yes

Intel 64

Yes

Intel® Speed Shift Technology

Yes

Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0

Yes

Intel® Control-flow Enforcement Technology (CET)

Yes

Intel® Thread Director

Yes

Intel Turbo Boost Max Technology 3.0

Yes

Intel® Boot Guard

Yes

Intel® Deep Learning Boost (Intel® DL Boost) on CPU

Yes

Intel® Volume Management Device (VMD)

Yes

Mode-based Execute Control (MBE)

Yes

Intel® Standard Manageability (ISM)

Yes

Intel® Turbo Boost Max Technology 3.0 frequency

5.4 GHz

Status

Launched

Launch date

Q1'24

OpenCL version

3.0

Processor package size

45 x 37.5 mm
