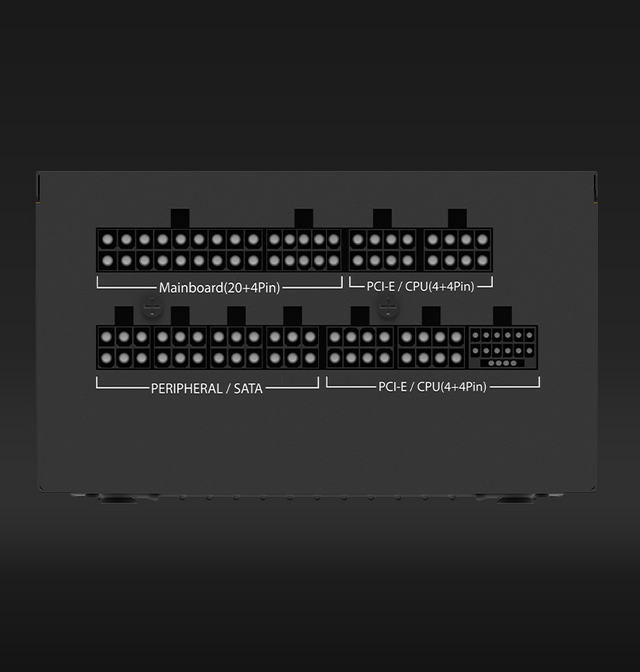

Sursa Aqirys Magnetar 1000W 80 Gold Plus TECHNICAL DATA Continuous power: 1000W Form factor: ATX ATX Version: ATX V2.52 (3.0 Ready) Efficiency: 80PLUS® Gold certified Intel® C6/C7: Yes PFC: Active Illumination: No Modular cables: Yes Cable type: Flat, black Fan size: 120 mm Fan speed: Temperature controlled Fan technology: Hydro Dynamic Bearing AC Input: 200 - 240V, 15A, 50/60Hz DC Output +3.3V: 16A DC Output +5V: 16A DC Output +12V1: 83.5A DC Output -12V: 0.3A DC Output +5Vsb: 3A MB connector: 1x 20+4P CPU connector: 2x 4+4P PCIe connector: 2x (2x 6+2P) PCIe (Gen 5.0) connector: 1x 12+4P SATA connector: 9x Molex connector: 3x 4P Protections: OOP, UVP, OVP, SCP, NLO, SIP, OCP, OTP Environmental compliance: RoHS, WEEE, ErP Lot 6 Dimensions (LxWxH): 160 x 150 x 86 mm Weight: 1450 g Color: Black

Standard

80Plus-Gold

Connectivity

Yes

PFC

Active

PSU Power

751W - 1000W

PSU Type

ATX

RGB

NU
