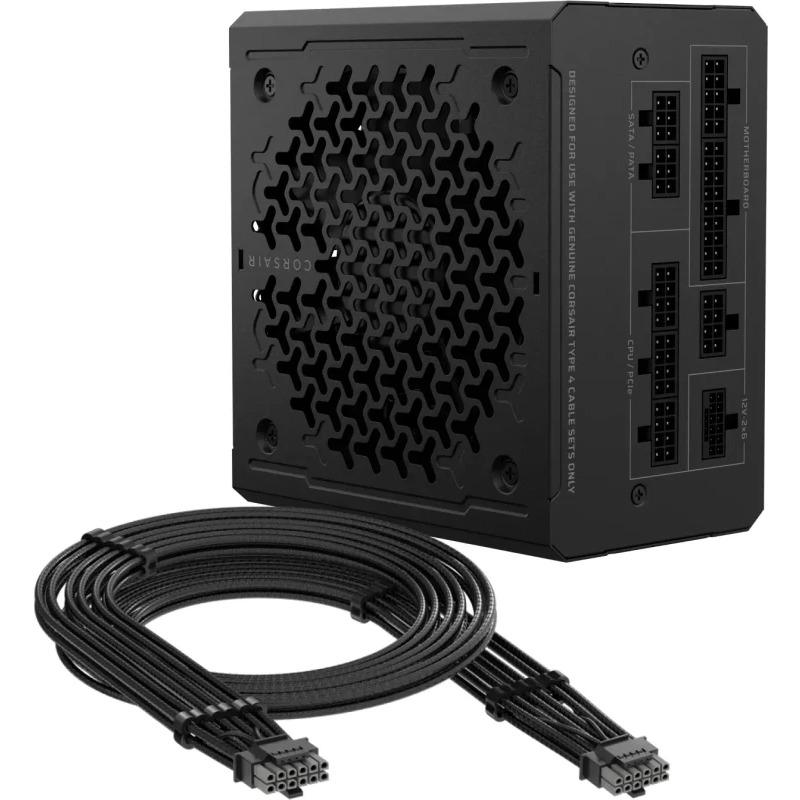

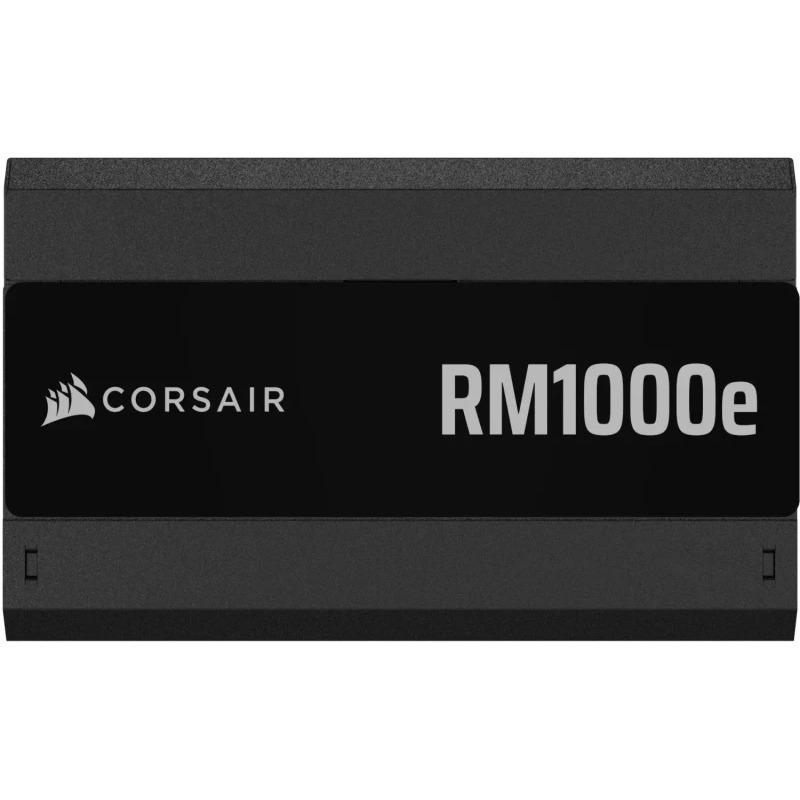

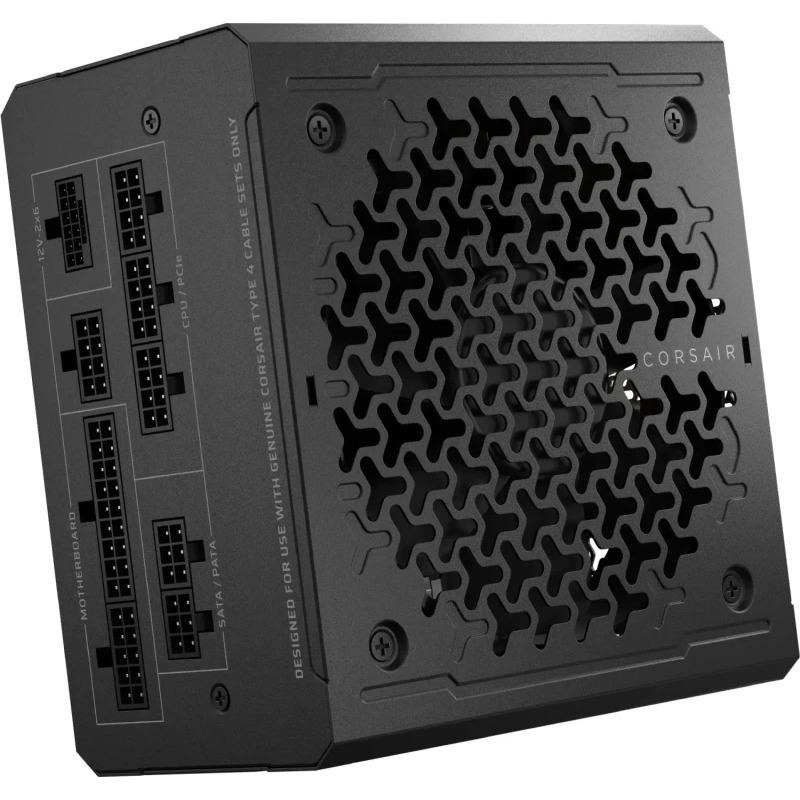

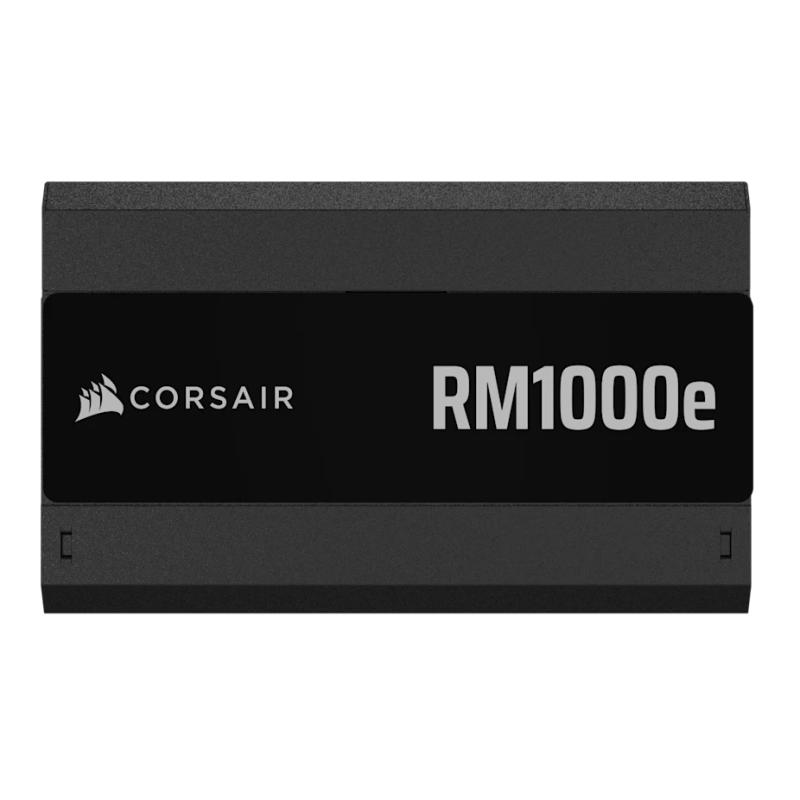

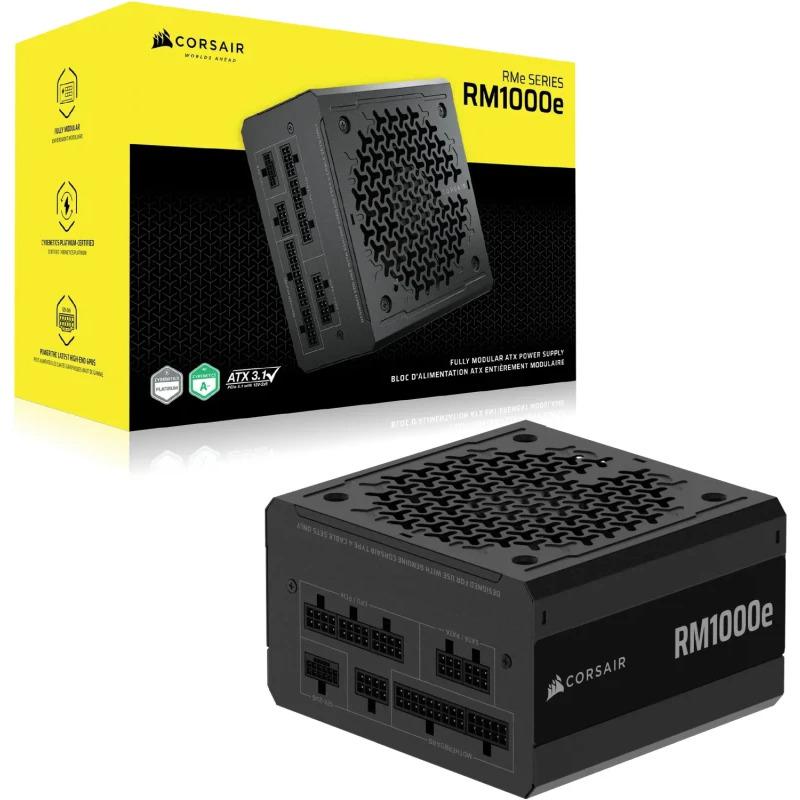

Sursa CORSAIR RM1000e 1000W 80+ GOLD, ATX

Sursa CORSAIR RM1000e 1000W 80+ GOLD, ATX, Full Modulara

Compliance certificates

CE, RoHS, UKCA

Number of fans

1 fan(s)

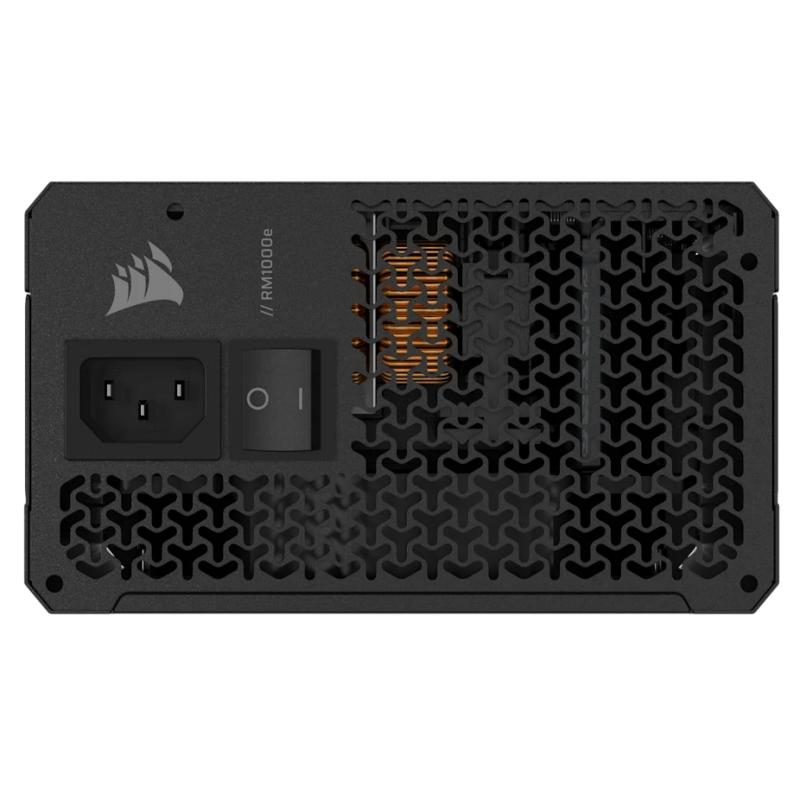

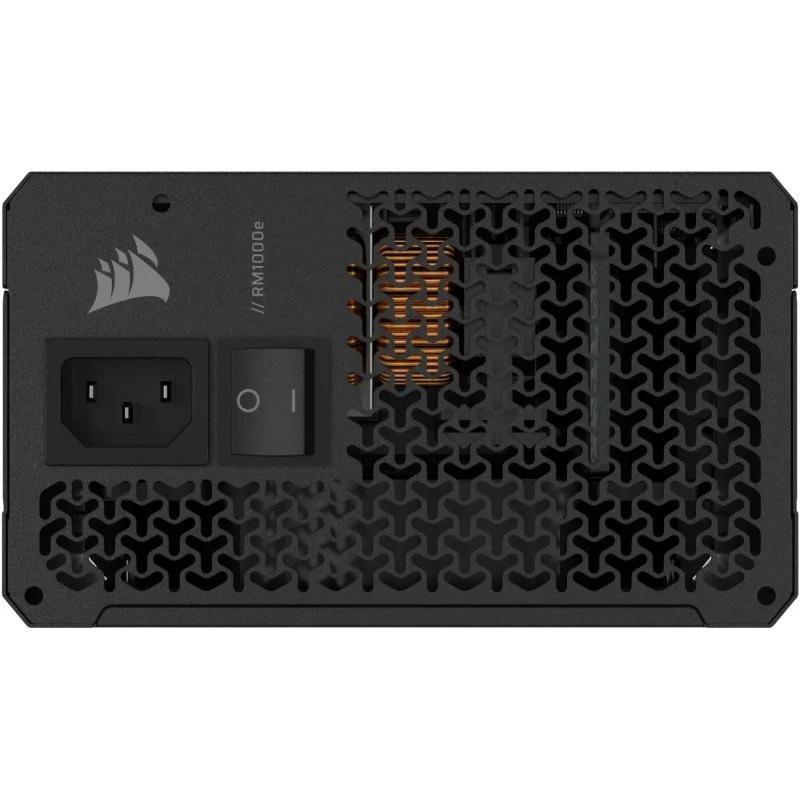

On/off switch

Yes

Illumination

No

Fan diameter

12 cm

Fan location

Front

Mean time between failures (MTBF)

100000 h

80 PLUS certification

80 PLUS Gold

ATX version

3.1

Purpose

PC

Power supply unit (PSU) form factor

ATX

Number of SATA power connectors

6

EPS power connector (4+4 pin)

Yes

Motherboard power connector

24-pin ATX

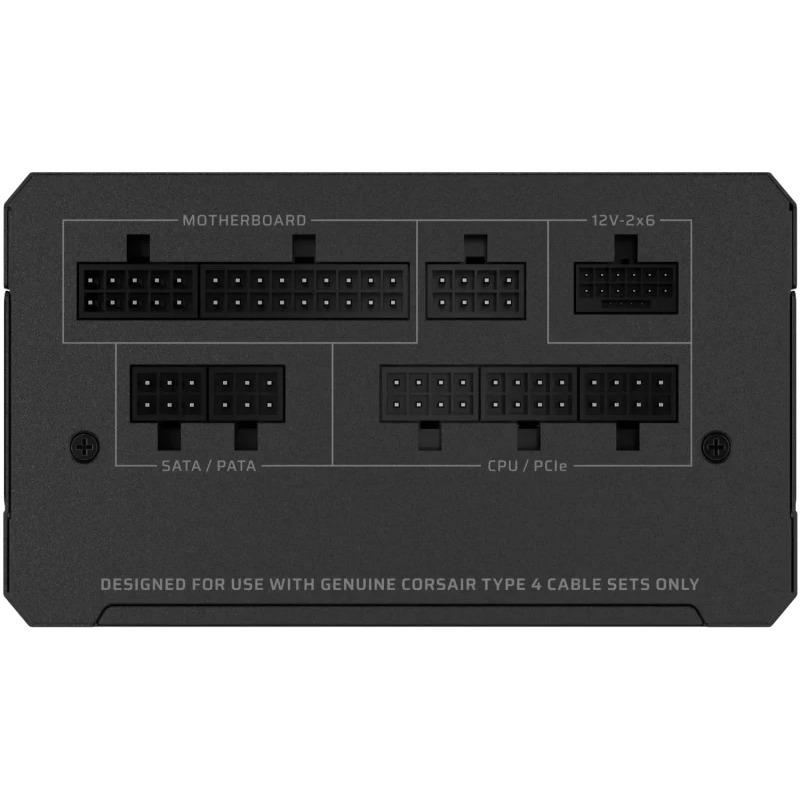

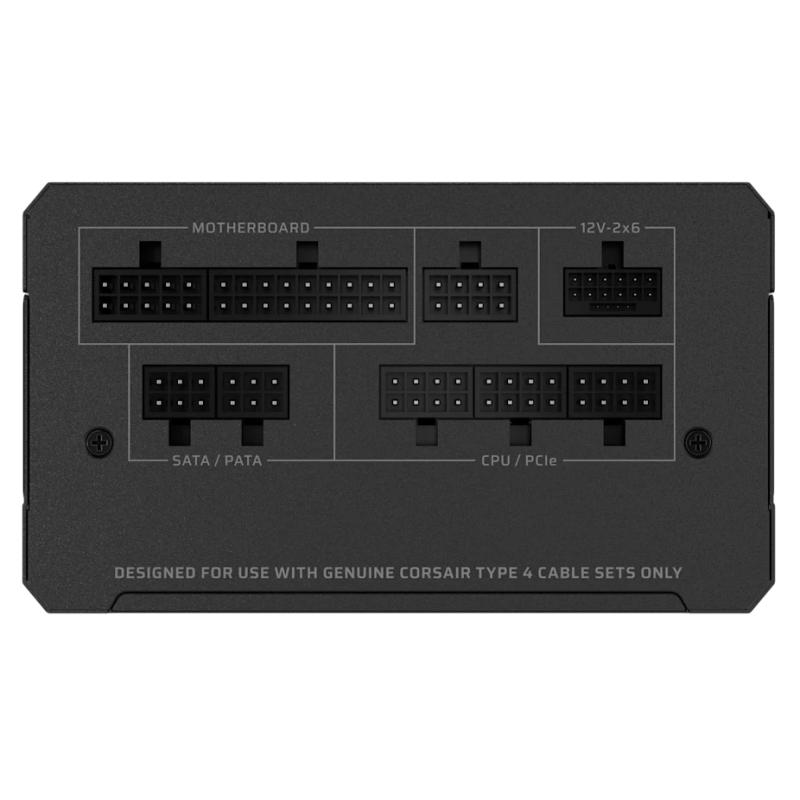

Cabling type

Fully-Modular

PCI Express power connectors (6+2 pin)

2

Number of PATA power connectors

2

PCI Express power connectors (12+4 pin)

1

Input current

10 - 5 A

Total power

1000 W

Max output current (+3.3V)

20 A

Max output current (+5V)

20 A

Combined power (+12V)

1000 W

Combined power (+3.3V)

150 W

Combined power (+5V)

150 W

AC input frequency

47 - 63 Hz

Combined power (+5Vsb)

15 W

Max output current (+12V)

62.5 A

Max output current (+5Vsb)

3 A

AC input voltage

100 - 240 V

Depth

86 mm

Width

150 mm

Height

140 mm

Weight

3.23 kg
