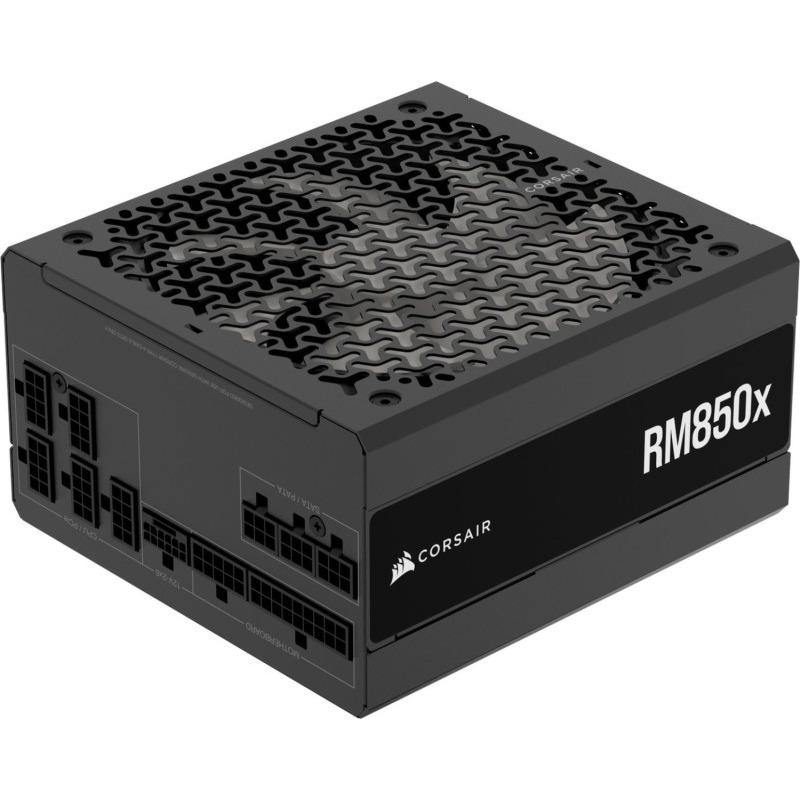

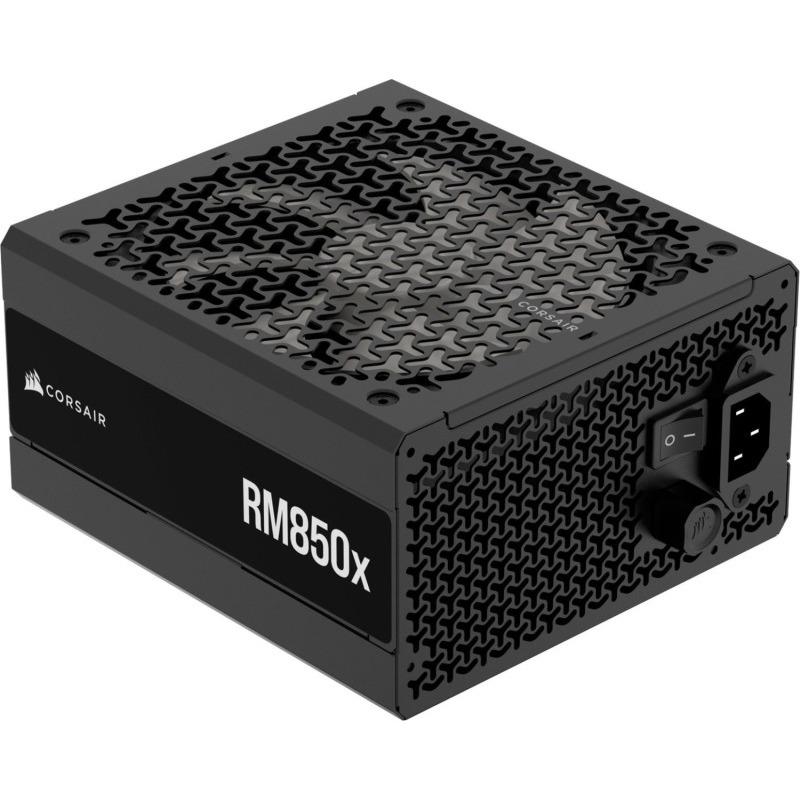

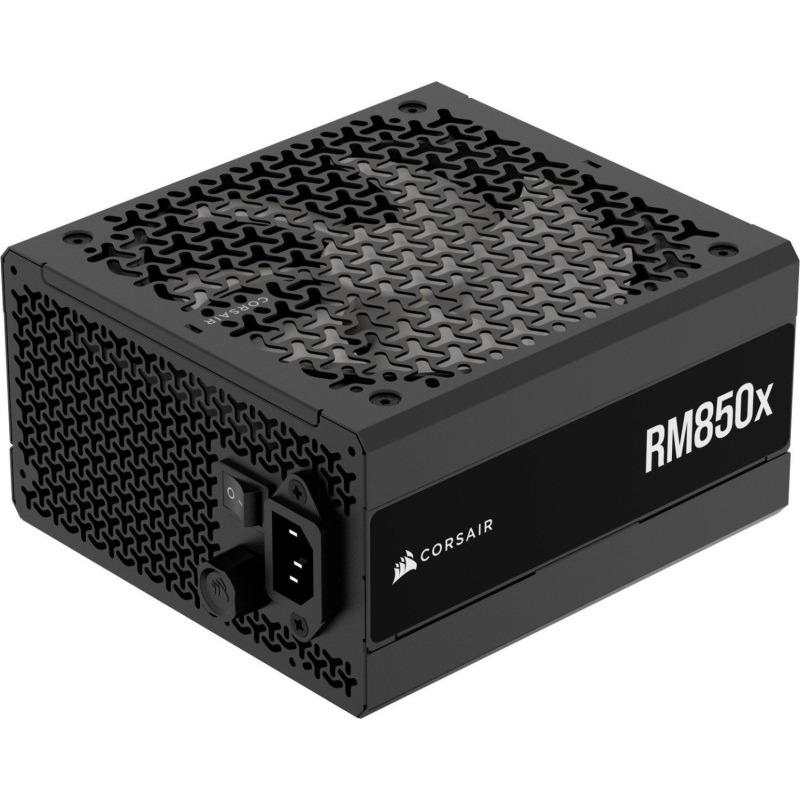

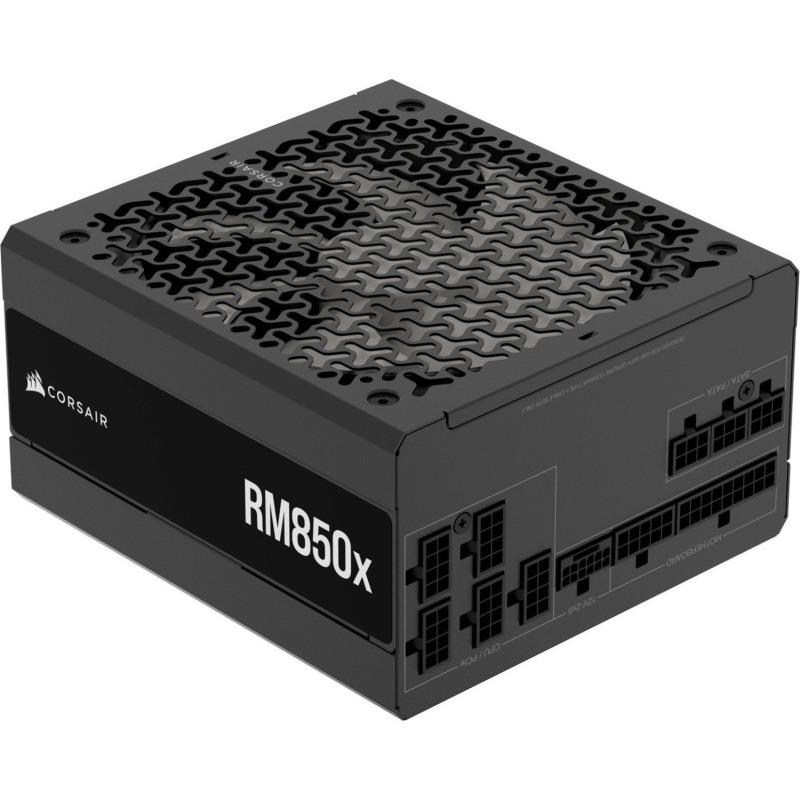

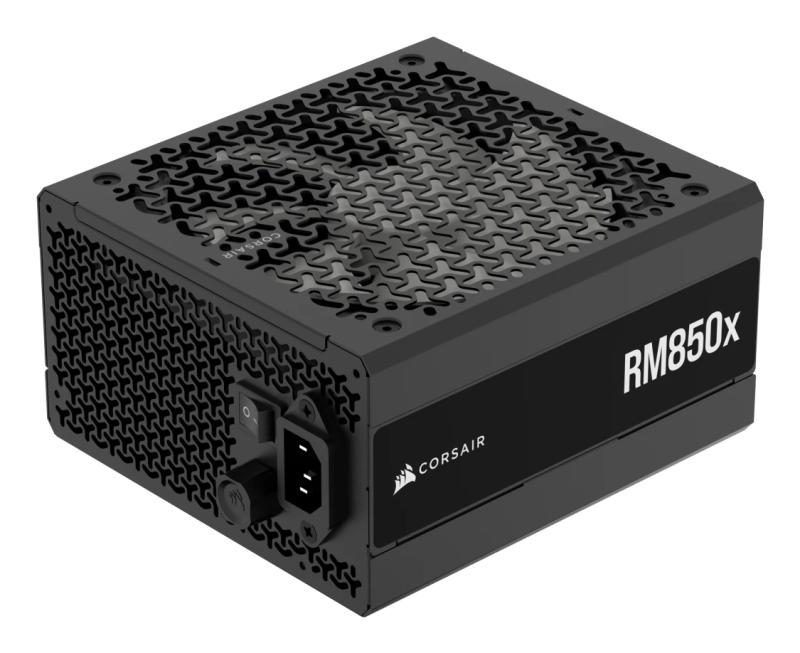

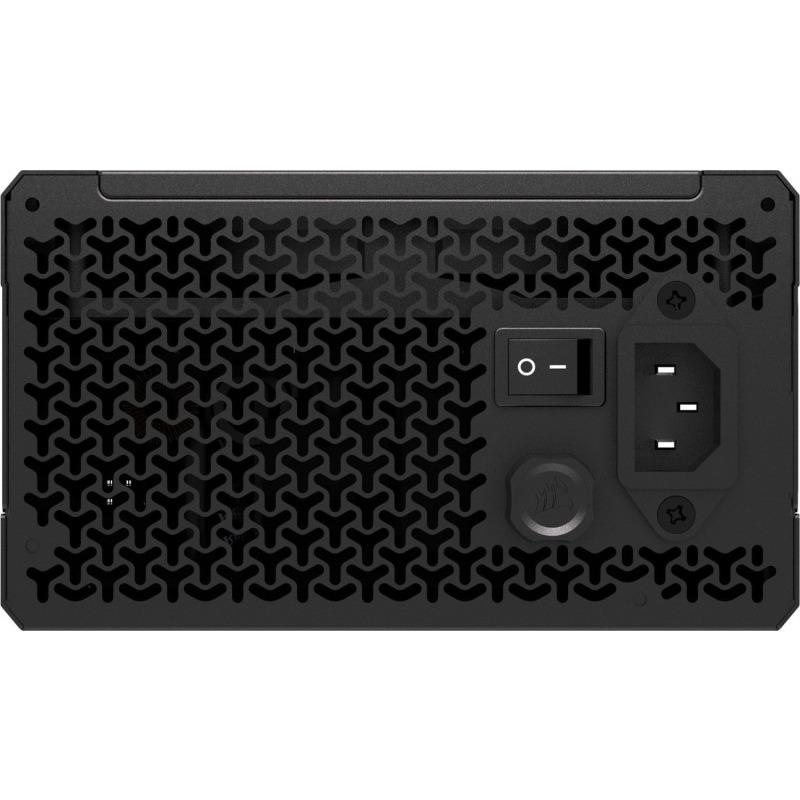

Sursa CORSAIR RMx Series, RM850x 80 PLUS GOLD

Sursa CORSAIR RMx Series, RM850x, 850 Watt, ATX 3.1, Cybenetics GOLD Certified, Fully Modular Power Supply

Compliance certificates

Low Voltage Directive (LVD), RoHS, UKCA

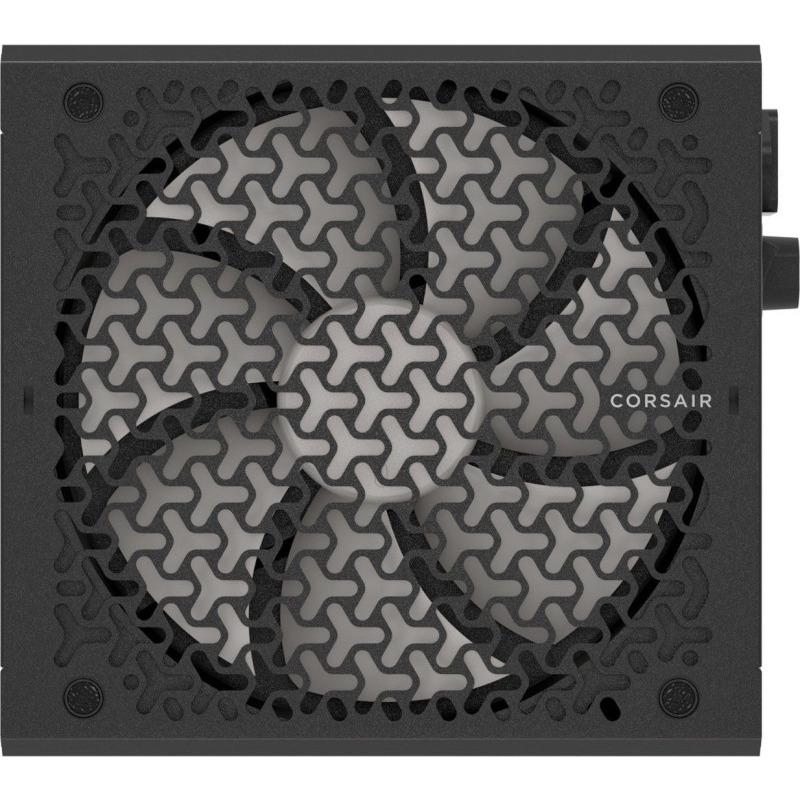

Fan diameter

14 cm

Number of fans

1 fan(s)

Cable tie(s) included

Yes

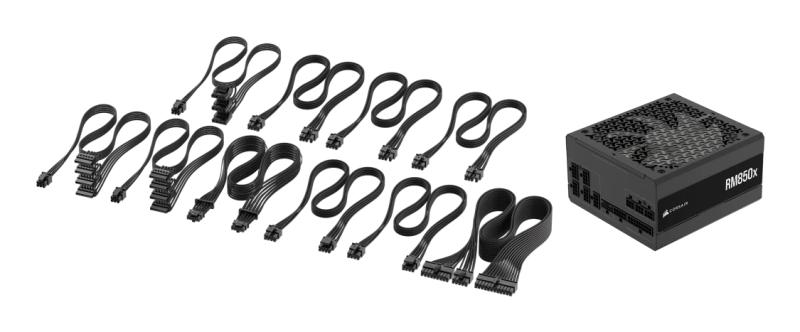

Cables included

AC, DC

ATX version

3.0

80 PLUS certification

80 PLUS Gold

Power supply unit (PSU) form factor

ATX

Purpose

PC/Server

EPS version

2.92

Motherboard power cable length

61 cm

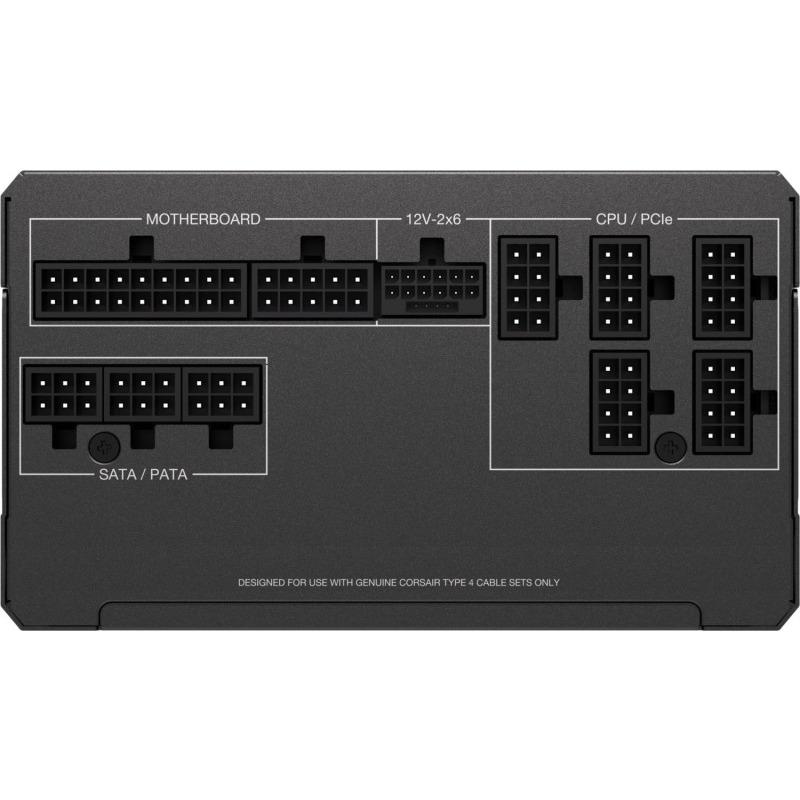

Cabling type

Fully-Modular

EPS power connector (4+4 pin)

Yes

Motherboard power connector

24-pin ATX

Number of SATA power connectors

12

SATA power cable length

455,570,685,800 mm

Peripheral (Molex) power cable length

450,550,650,750 mm

PCI Express power connectors (6+2 pin)

3

PCI Express power connectors (16-pin)

1

PCI Express power cable length

75 cm

Peripheral (Molex) power connectors (4-pin)

2

Input current

10 - 5 A

Total power

850 W

Combined power (+12V)

849.6 W

Max output current (+12V)

70.8 A

Efficiency

90%

Max output current (+3.3V)

20 A

Max output current (+5V)

20 A

Combined power (+3.3V)

150 W

Combined power (+5V)

150 W

AC input frequency

47 - 63 Hz

Combined power (+5Vsb)

15 W

Max output current (+5Vsb)

3 A

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit

AC input voltage

100 - 240 V

Height

86 mm

Width

150 mm

Depth

160 mm

Weight

3.28 kg
