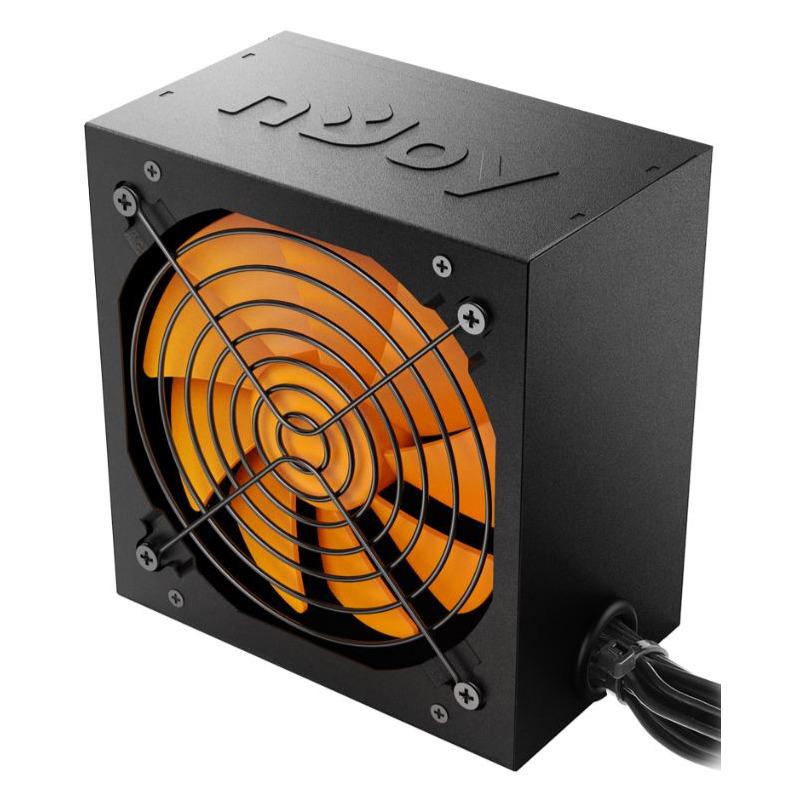

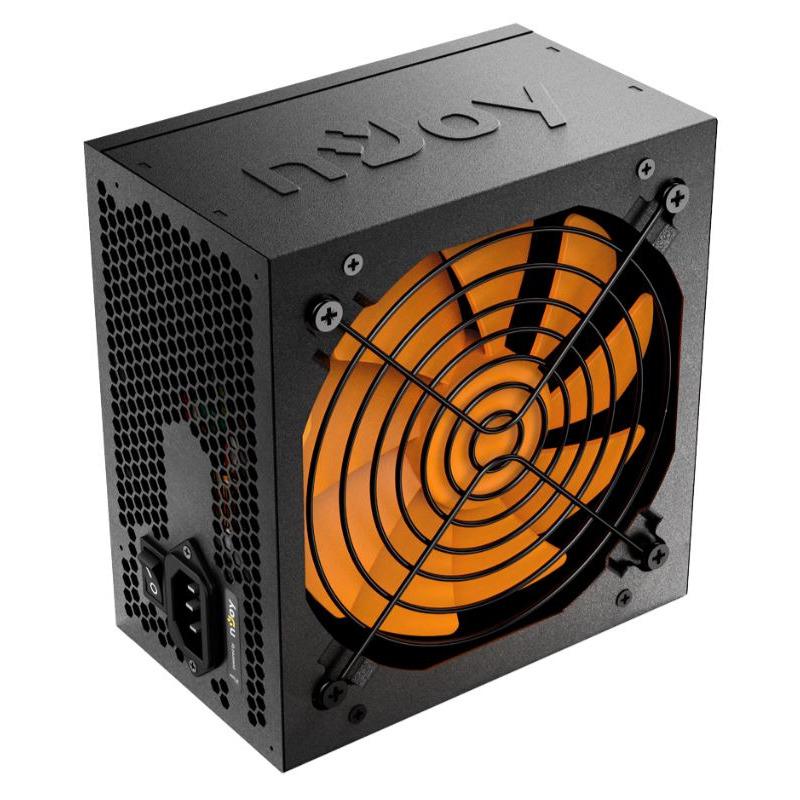

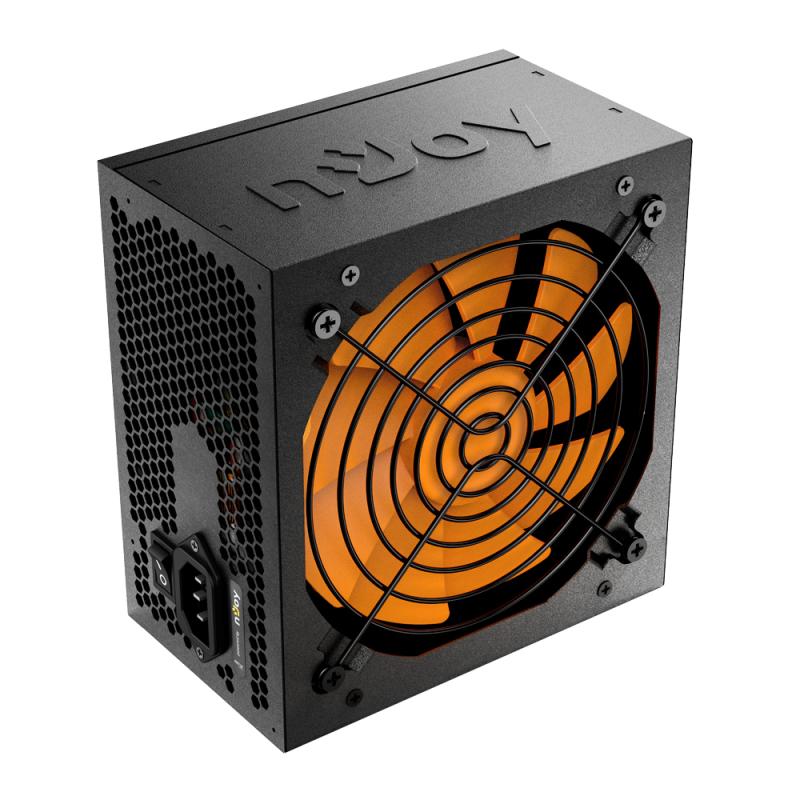

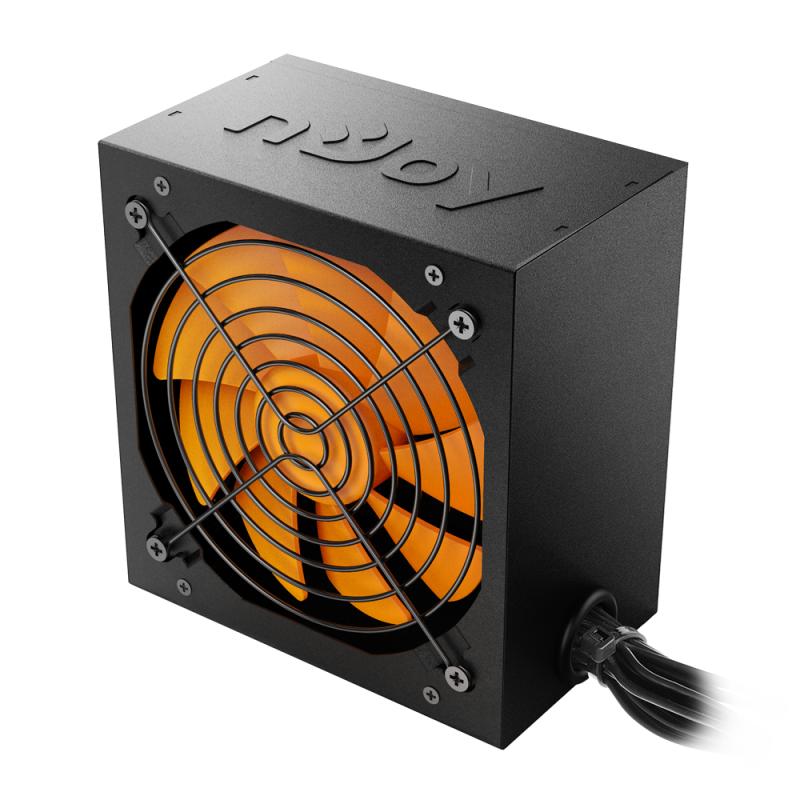

Sursa NJOY NEXO 850W 80+ GOLD

Sursa NJOY NEXO 850W 80+ GOLD, ATX, Active PFC, Protectie OVP / OCP / SCP / OPP, negru

Certification

CE, RoHS

Number of fans

1 fan(s)

Product colour

Black, Orange

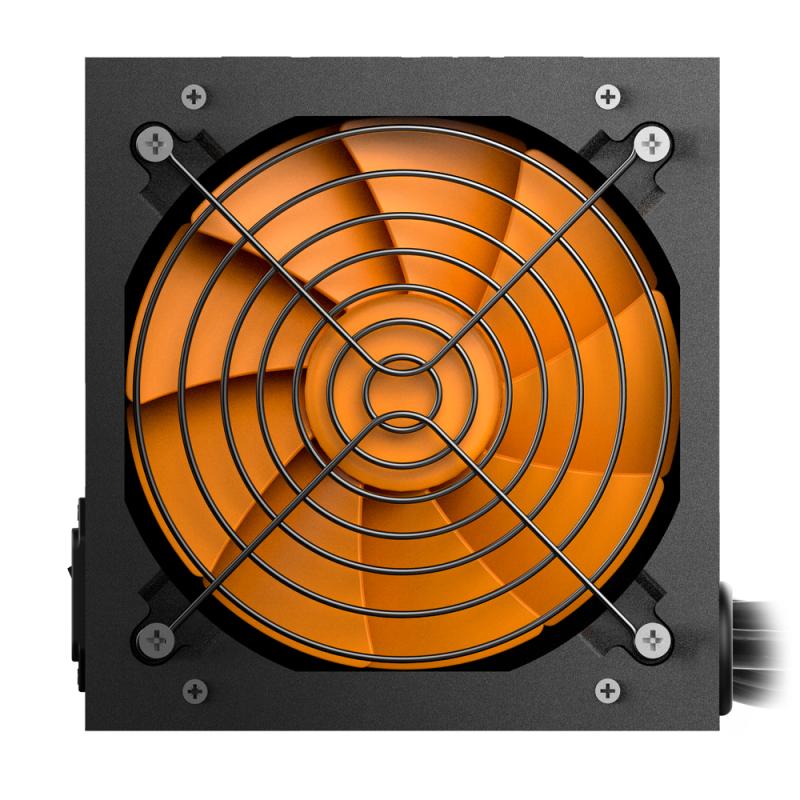

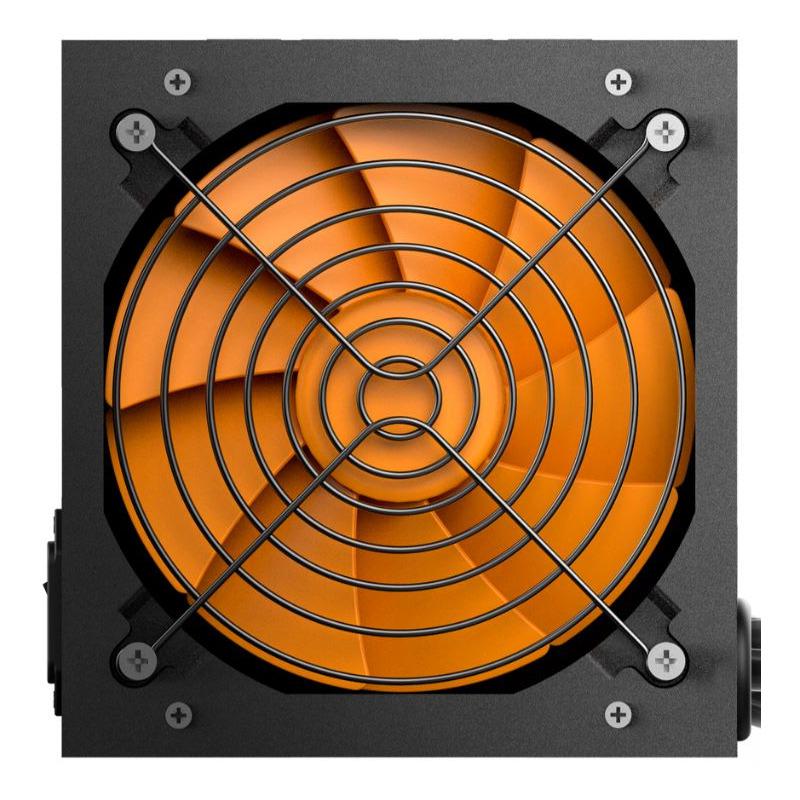

Fan location

Top

Fan diameter

14 cm

Master (outer) case width

375 mm

Master (outer) case length

525 mm

Master (outer) case height

295 mm

Master (outer) case net weight

20.9 kg

Master (outer) case gross weight

21.7 kg

Products per master (outer) case

10 pc(s)

Cables included

CPU, PCIe, Peripheral (Molex), SATA

Package height

100 mm

Package width

180 mm

Package depth

270 mm

Package weight

2.09 kg

Purpose

PC

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS Gold

Bearing technology

Hydraulic

ATX version

2.53

CPU power cable length

55 cm

Number of EPS connectors

2

PCI Express power connectors (6+2 pin)

2

Motherboard power cable length

40 cm

SATA power cable length

400 mm

Peripheral (Molex) power cable length

400 mm

Peripheral (Molex) power connectors (4-pin)

4

Motherboard power connector

20+4 pin ATX

Number of SATA power connectors

6

CPU power connector (4+4 pin)

Yes

Cabling type

Non-Modular

AC input frequency

47 - 63 Hz

Total power

850 W

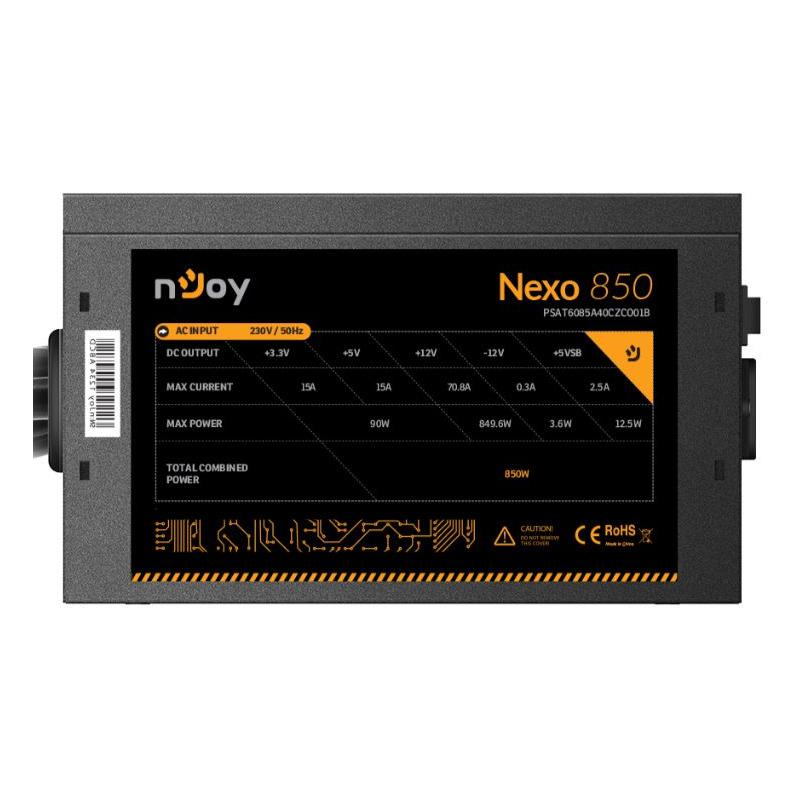

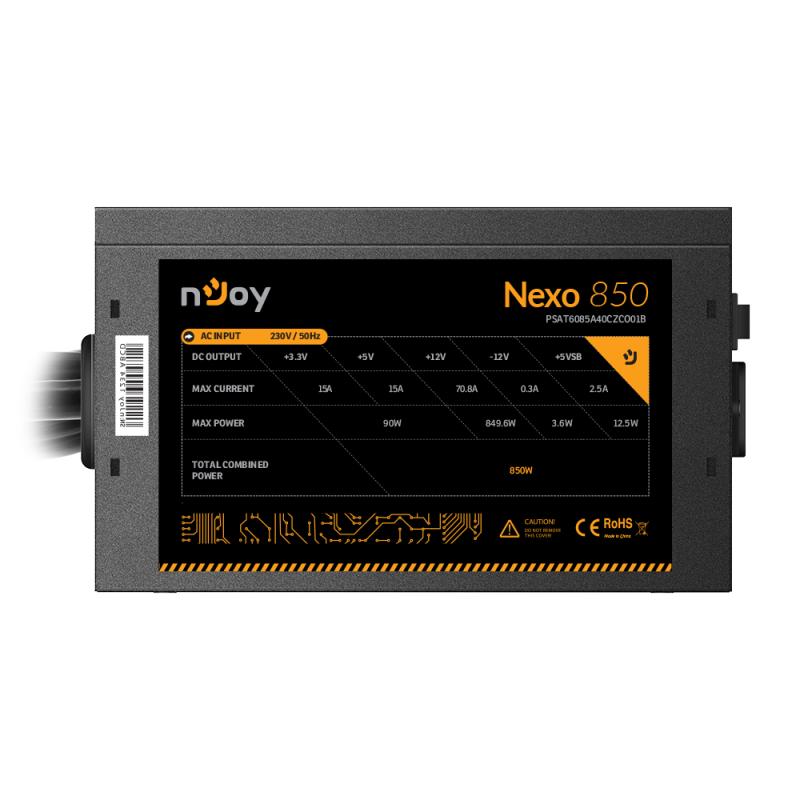

Combined power (+12V)

849.6 W

Max output current (+12V)

70.8 A

AC input voltage

230 V

Combined power (-12V)

3.6 W

Combined power (+5Vsb)

12.5 W

Max output current (+3.3V)

15 A

Max output current (+5V)

15 A

Max output current (-12V)

0.3 A

Max output current (+5Vsb)

2.5 A

Power protection features

Over power, Over voltage, Overcharge, Short circuit

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

90 W

Combined power (+5V)

90 W

Width

150 mm

Height

86 mm

Weight

1.89 kg

Depth

160 mm
