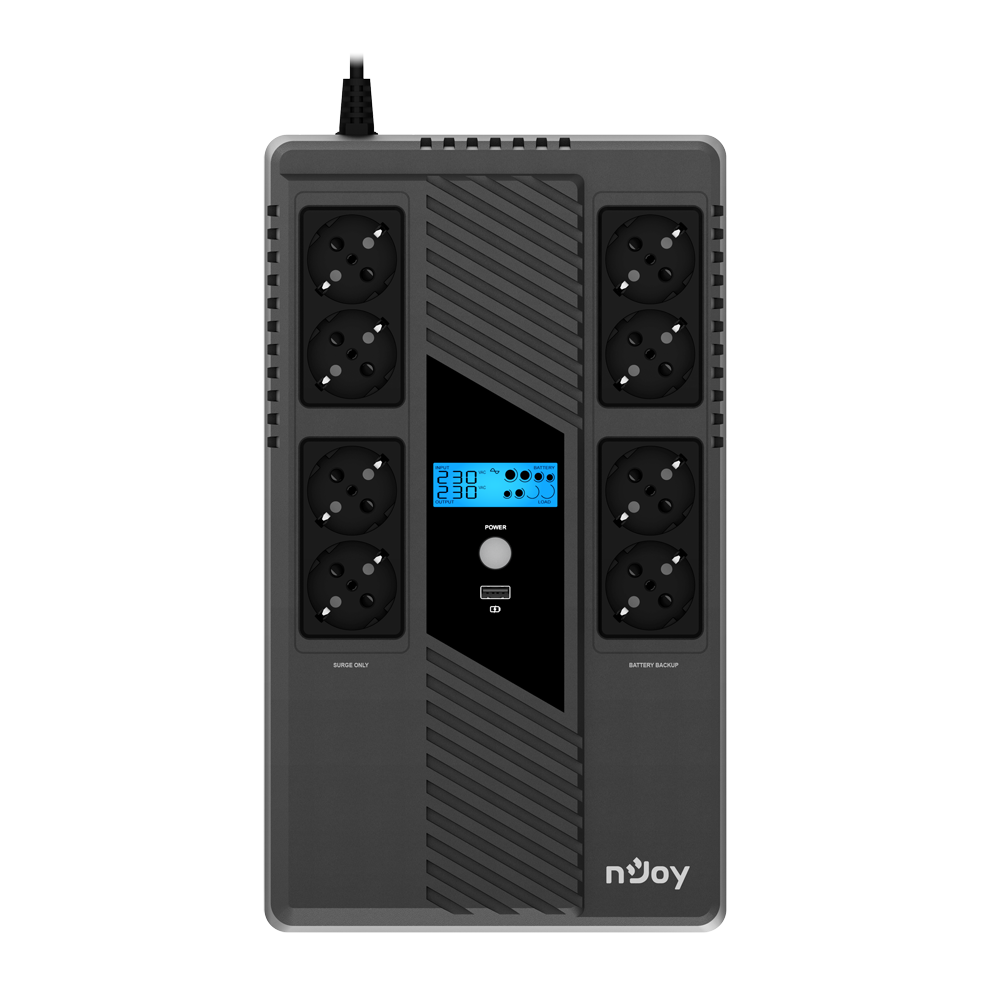

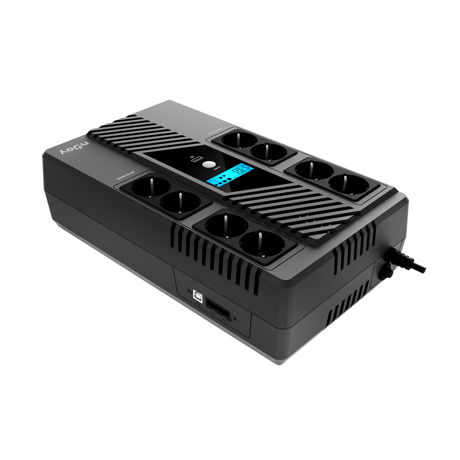

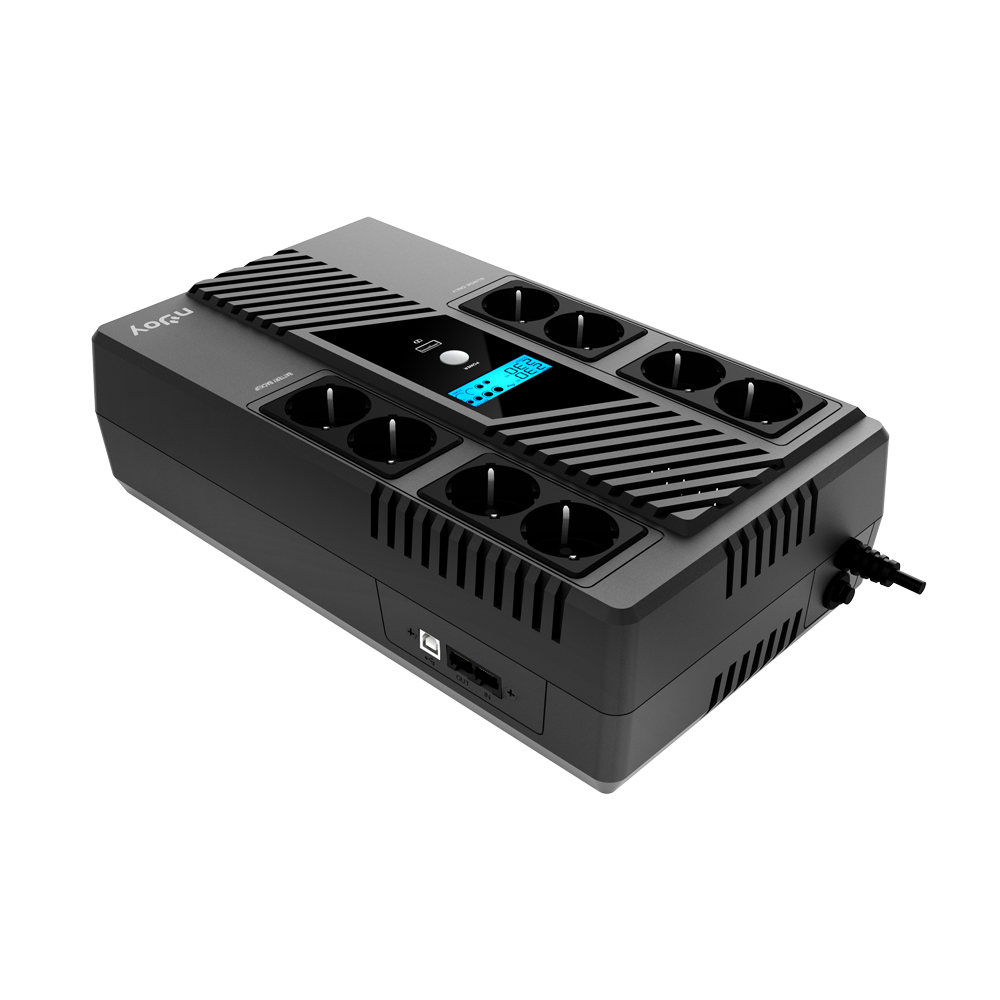

UPS nJoy Token 800 VA / 480 W Capacity 800 VA / 480 W

UPS nJoy Token 800 VA / 480 W Capacity 800 VA / 480 W Type Line-Interactive Input Nominal Voltage 230 VAC Accepted Voltage Range 170 – 280 VAC Frequency Range 50Hz / 60Hz (Auto Sensing) Output Nominal Voltage 230 VAC Accepted Voltage range 230 VAC, +/- 10% Frequency Range (Batt. Mode) 50 Hz / 60Hz ± 1% Power Factor 0.6 @ nominal voltage (100% load) Waveform (Batt. Mode) Simulated Sinewave Transfer Time 6ms typical Indicators type LCD Standby mode, AC mode Overload mode, Battery mode Self-Test mode Battery replacement mode Fault Mode Alarm Battery mode, Overload mode, Low battery, Fault mode Protection Outlets type 4x Schuko Battery Backup 4x Schuko Surge Protection RJ45 protection with 1Gb/s Full protection Overload, discharge, and overcharge protection Environement Noise level Fanless Humidity 0-90 % (non-condensing) Temperature 0-40ºC Battery Battery Type & Number 1x GP09122F (PN: BTVACIUOCTA2FCN01B) Typical Recharge Time 6~8 hours recover to 90% capacity Running time on battery (minutes) 25% Load - 15min 50% Load - 2min 30s 75% Load - 0min 48s Management Communication port HID USB Software https://www.power-softwaredownload. com/viewpower.html USB Charger 5V/2.1A Physical Product dimensions 345 x 200 x 100 mm Product weight 5.8 kg Retail pack dimensions 425 x 146 x 269 mm Retail pack Weight 6.2 kg

Montare in rack

No

Management UPS

Yes

Tip UPS

Line Interactive

Ecran LCD

Da

Capacitate putere UPS

480W
