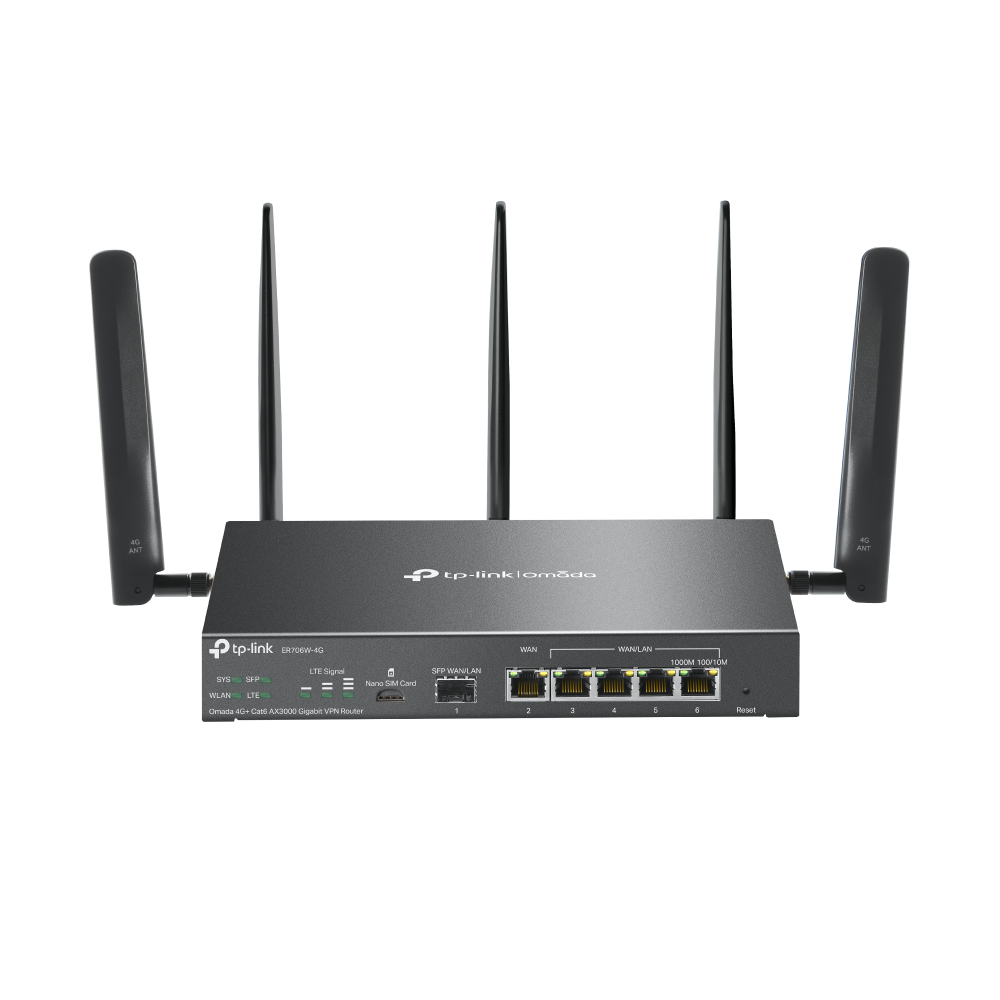

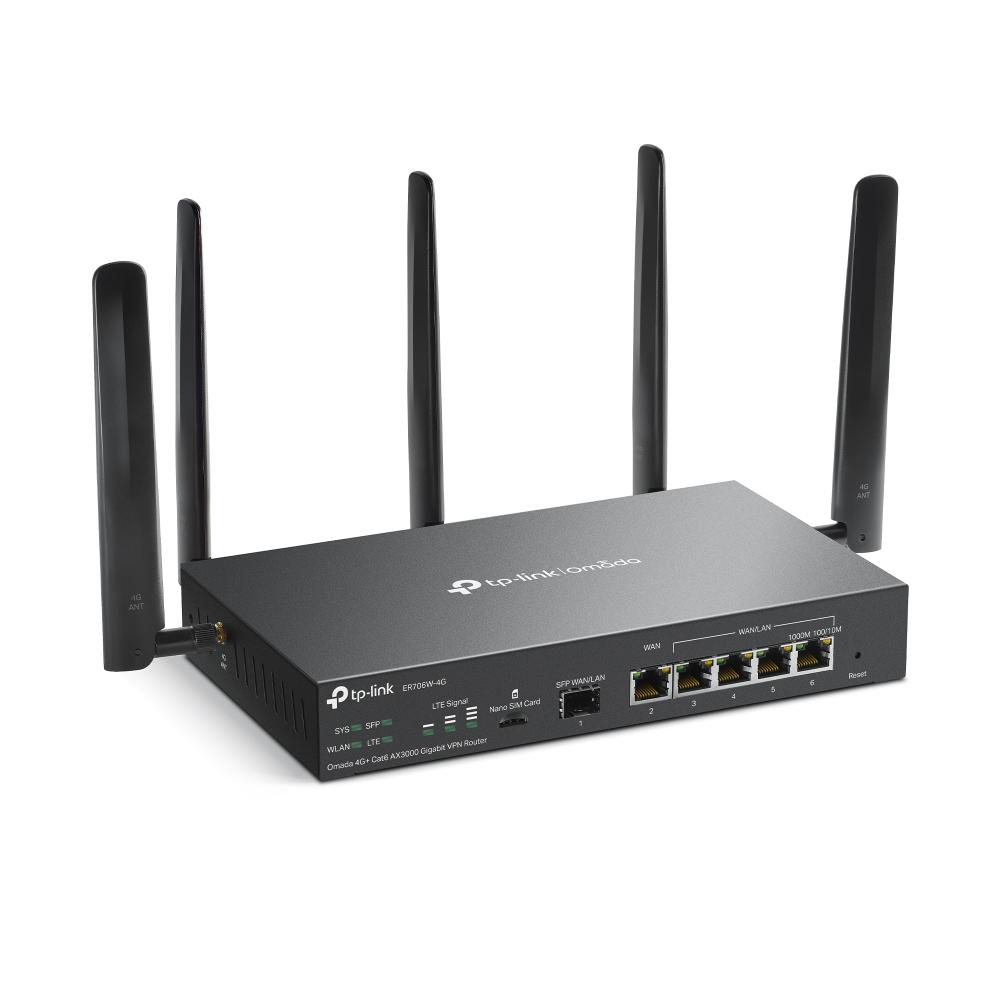

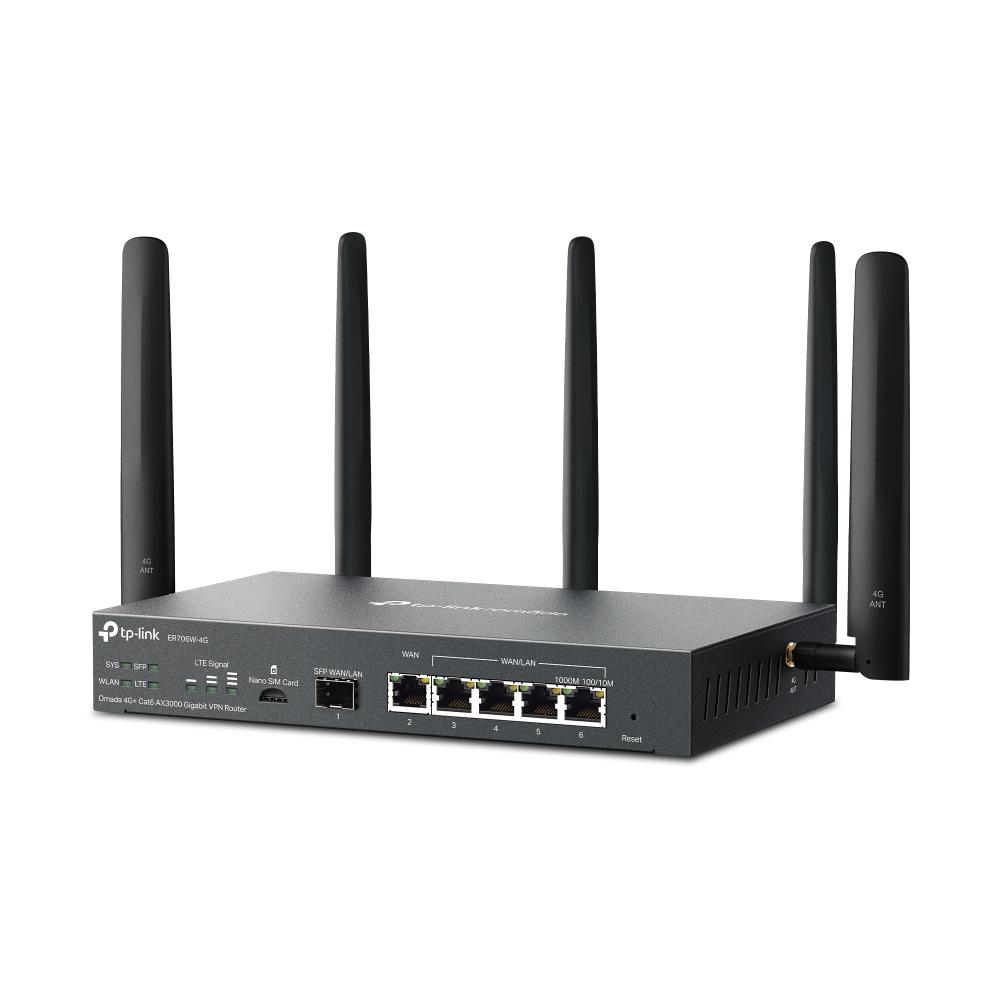

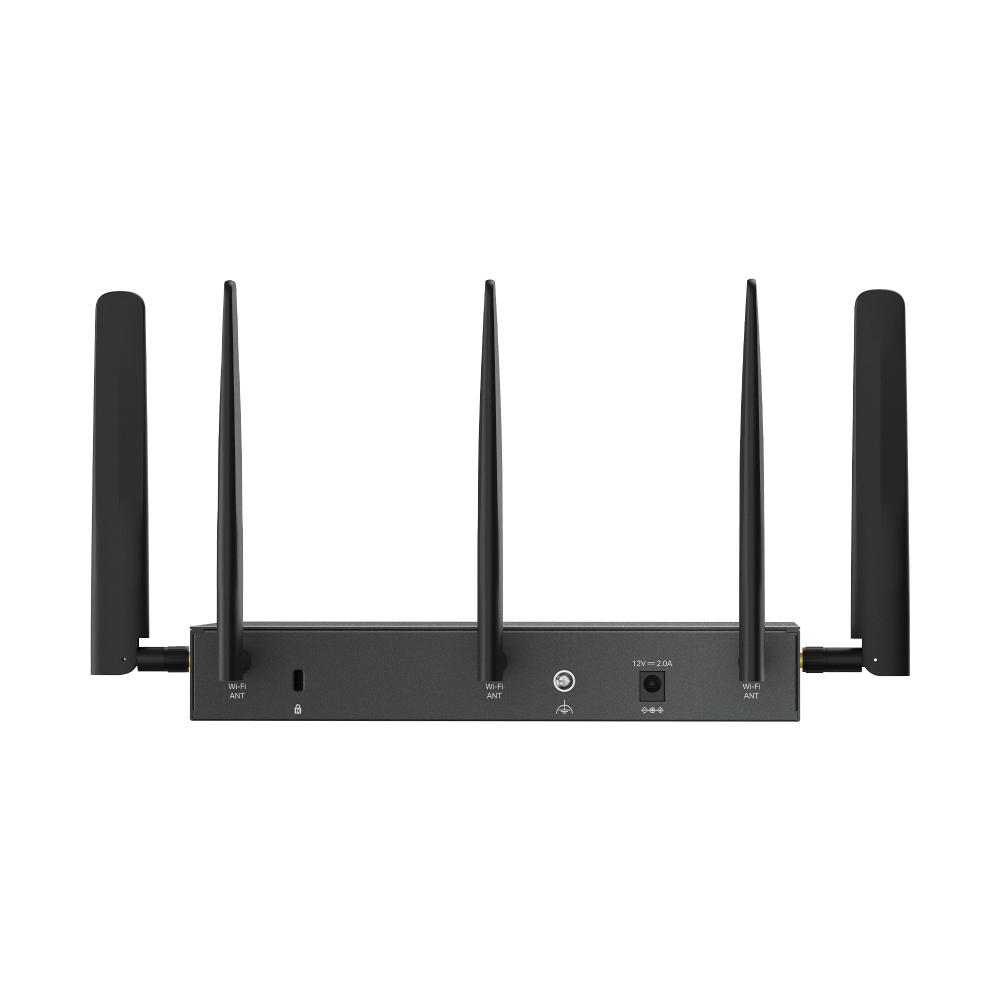

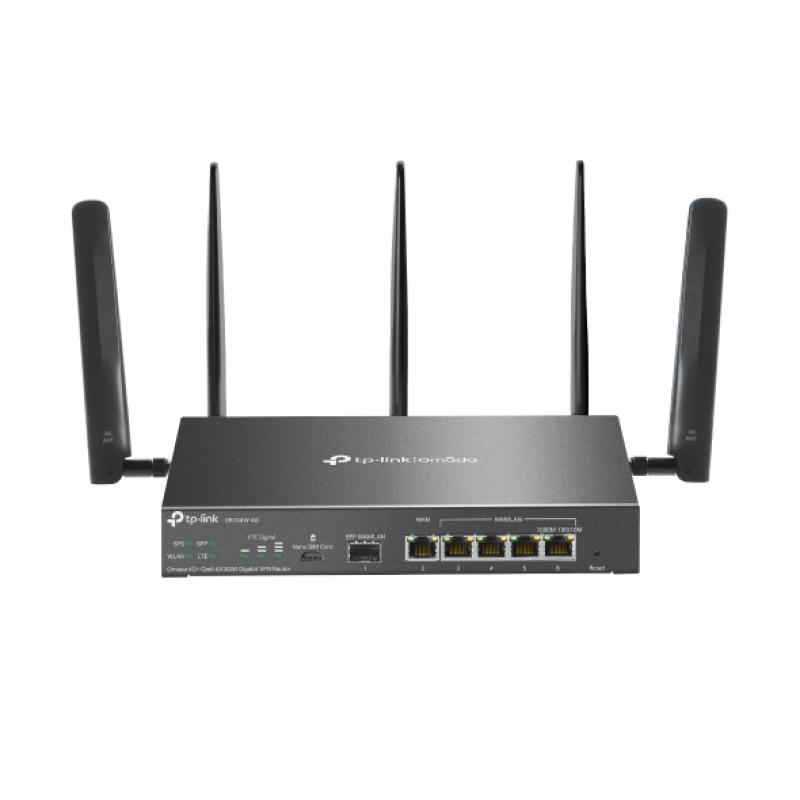

Omada 4G+ Cat6 AX3000 Gigabit VPN Router PORT: 1× Gigabit SFP WAN/LAN Port, 1× Gigabit RJ45 WAN Port, 4× Gigabit WAN/LAN RJ45 Ports, 1 Nano SIM slot (4G+ Cat6) SPEED: 574Mbps at 2.4 GHz + 2402 Mbps at 5 GHz (HE160) Wi-Fi Speed, 300 Mbps Download LTE Speed FEATURE: Integration with Omada SDN

"Omada 4G+ Cat6 AX3000 Gigabit VPN Router PORT: 1× Gigabit SFP WAN/LAN Port, 1× Gigabit RJ45 WAN Port, 4× Gigabit WAN/LAN RJ45 Ports, 1 Nano SIM slot (4G+ Cat6) SPEED: 574Mbps at 2.4 GHz + 2402 Mbps at 5 GHz (HE160) Wi-Fi Speed, 300 Mbps Download LTE Speed FEATURE: Integration with Omada SDN Controller, Support SSL VPN, OpenVPN and Wireguard/ IPsec/ PPTP/ L2TP/ L2TP over IPSec VPN, 4G+ Cat6 LTE, 2× Detachable LTE Antennas, 3× Detachable Wi-Fi Antennas, 160MHz Supported, OFDMA, MU-MIMO, Beamforming, Load Balance, Link Backup, Policy-based Firewall, Static Routing, Policy Routing, Multi-net DHCP, VLAN, stateful ACL, mDNS Repeater, Bridge VLAN"

Antenna design

External

Antennas quantity

5

Product type

Desktop/pole router

LED indicators

LAN, LTE, Status, System, WAN

Product colour

Black

Reset button

Yes

Ethernet LAN interface type

Gigabit Ethernet

Ethernet LAN

Yes

Flash memory

128 MB

Internal memory type

DDR4

Internal memory

512 MB

Bandwidth control

Yes

MU-MIMO technology

Yes

MIMO

Yes

Mobile network generation

4G

4G standard

LTE-TDD & LTE-FDD

SIM card type

NanoSIM

3G standards

HSDPA, HSUPA, WCDMA

4G bands supported

800,850,900,1800,2100,2300,2500,2600 MHz

Dynamic DNS (DDNS)

Yes

VPN Passthrough

Yes

Operating relative humidity (H-H)

10 - 90%

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Storage relative humidity (H-H)

5 - 90%

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Ethernet LAN (RJ-45) ports

5

Power source type

AC

DHCP server

Yes

URL filtering

Yes

Network address translation (NAT)

Yes

Access Control List (ACL)

Yes

SIM card slot

Yes

DSL WAN

No

3G/4G USB modem compatibility

No

Ethernet WAN

Yes

Height

35 mm

Width

226 mm

Depth

131 mm

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

WLAN data transfer rate (max)

2402 Mbit/s

Additional-Slot

Slot-LAN/WAN

ADSL

No

WAN-Ports

1

WAN-Port-Type

Gigabit

LAN-Port-Type

Gigabit

LAN-Ports

4

Redundant-PSU

No
