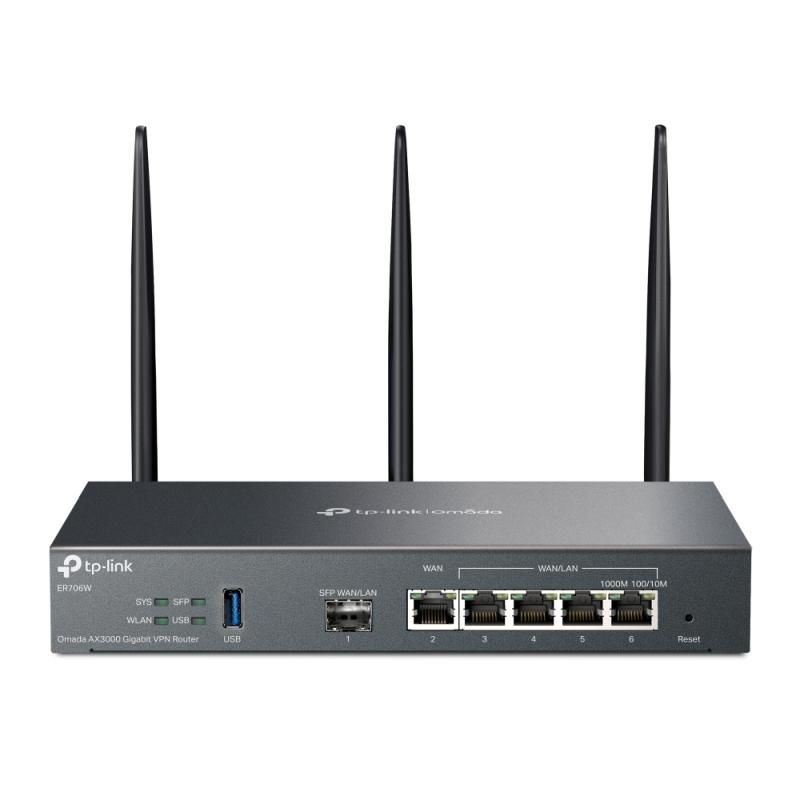

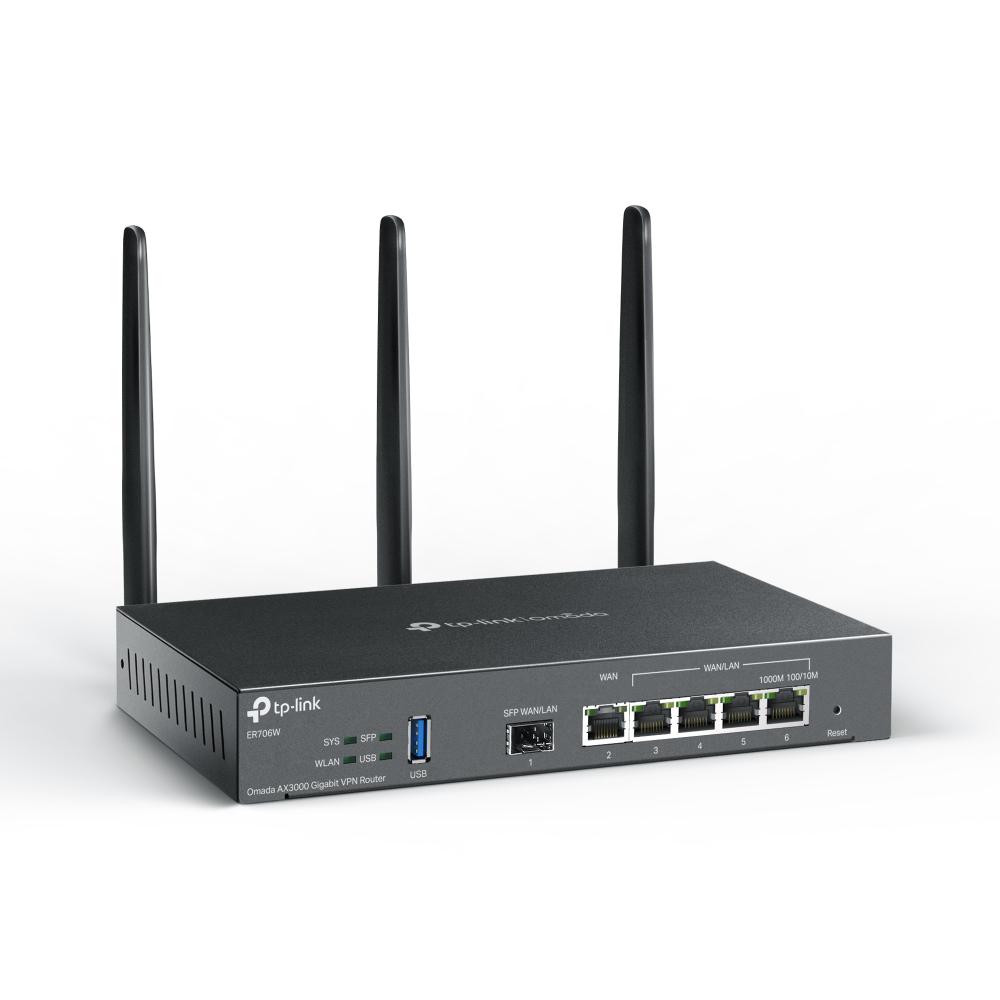

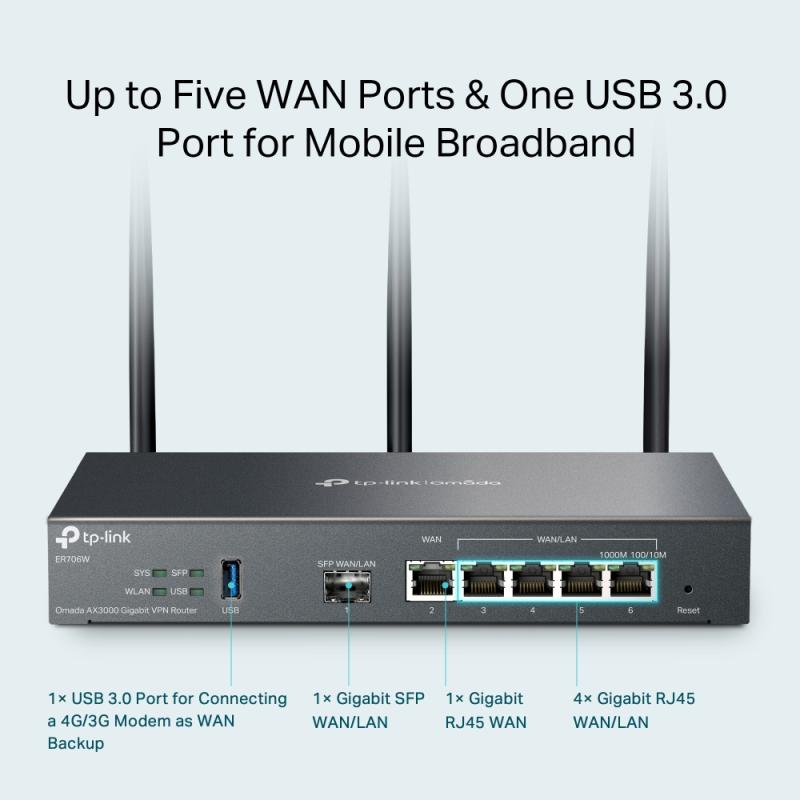

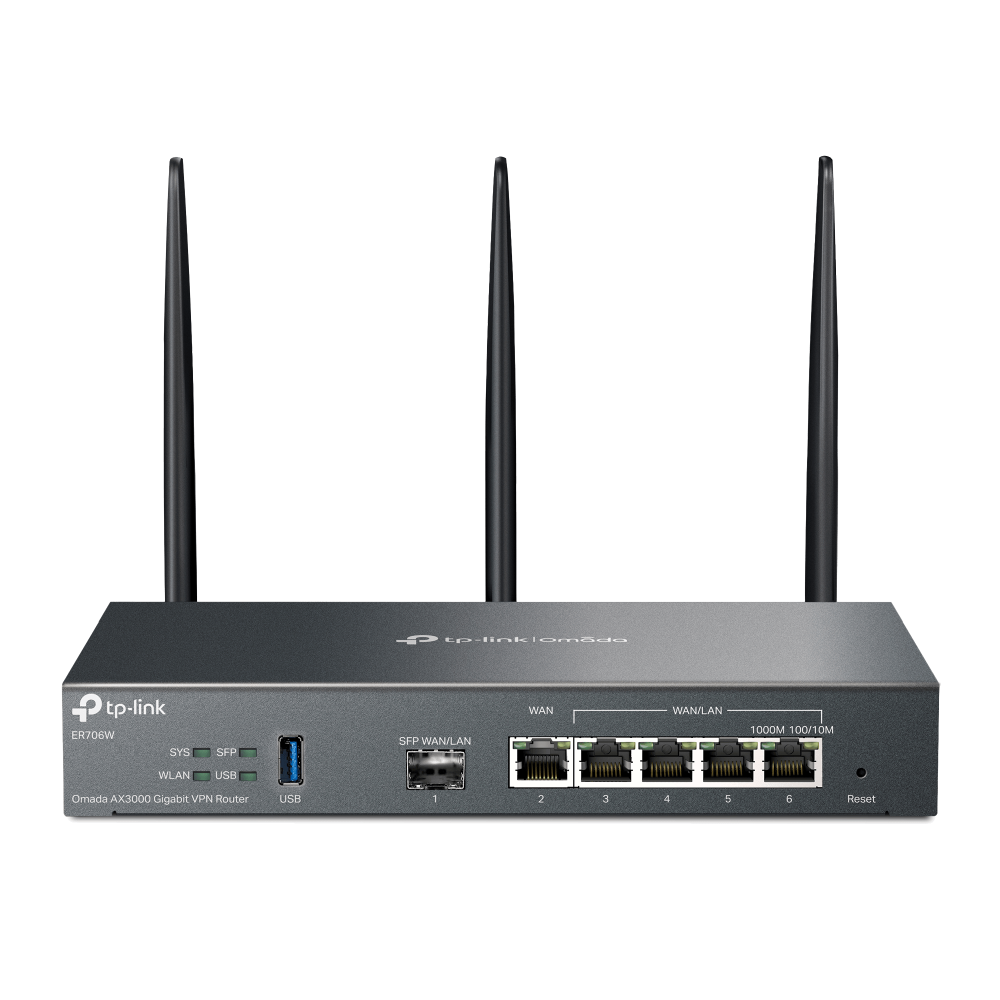

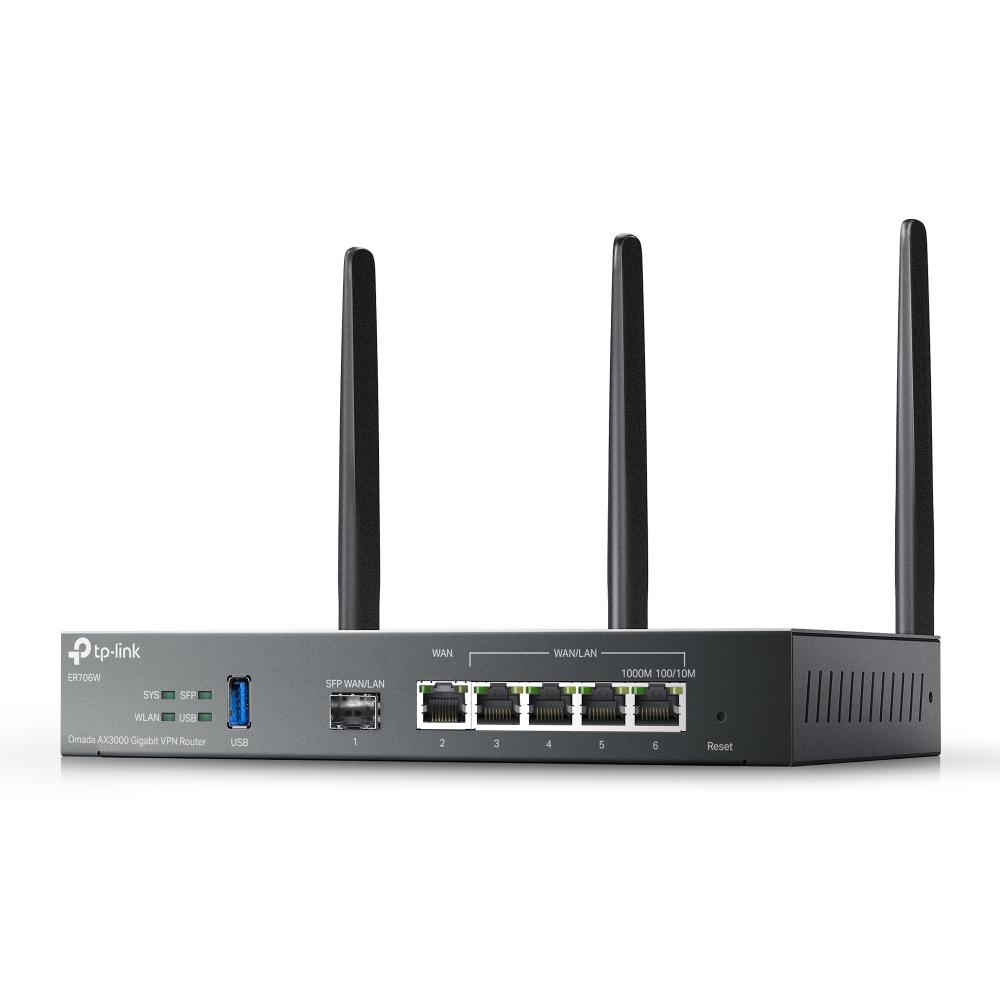

Omada AX3000 Wi-Fi 6 Gigabit VPN Router PORT: 1× Gigabit SFP WAN/LAN Port, 1× Gigabit RJ45 WAN Port, 4× Gigabit WAN/LAN RJ45 Ports, 1× USB 3.0 SPEED: 574Mbps at 2.4 GHz + 2402 Mbps at 5 GHz (HE160) FEATURE: Integration with Omada SDN Controller, Support SSL VPN, OpenVPN and Wireguard/ IPsec/ PPTP/

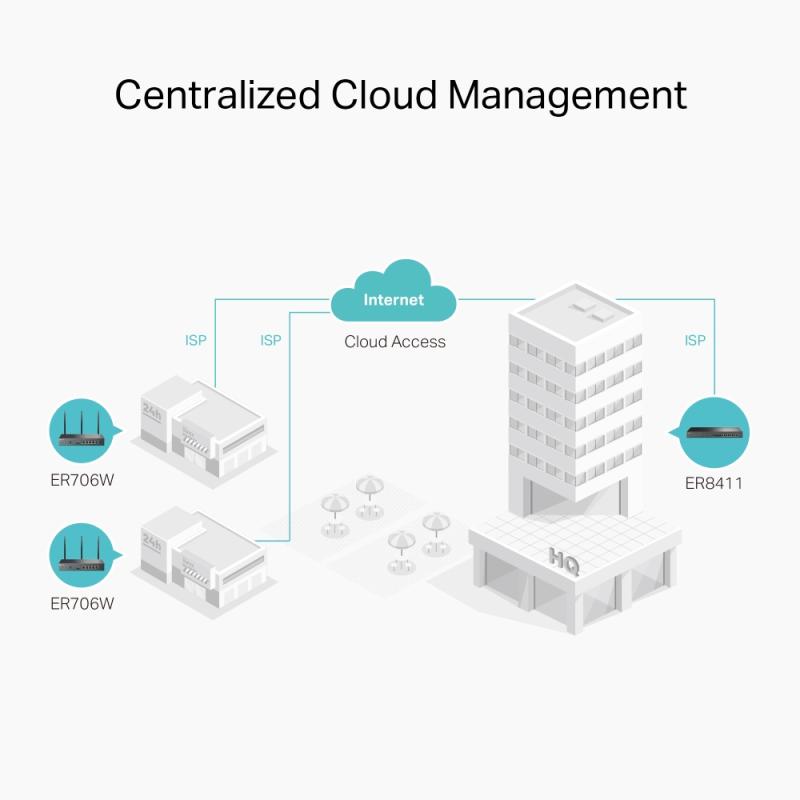

"Omada AX3000 Wi-Fi 6 Gigabit VPN Router PORT: 1× Gigabit SFP WAN/LAN Port, 1× Gigabit RJ45 WAN Port, 4× Gigabit WAN/LAN RJ45 Ports, 1× USB 3.0 SPEED: 574Mbps at 2.4 GHz + 2402 Mbps at 5 GHz (HE160) FEATURE: Integration with Omada SDN Controller, Support SSL VPN, OpenVPN and Wireguard/ IPsec/ PPTP/ L2TP/ L2TP over IPSec VPN, 3× Detachable Antennas, 160MHz Supported, OFDMA, MU-MIMO, Beamforming, Load Balance, Link Backup, 4G LTE Backup with USB Dongle, Policy-based Firewall, Static Routing, Policy Routing, Multi-net DHCP, VLAN, stateful ACL, mDNS Repeater, Bridge VLAN"

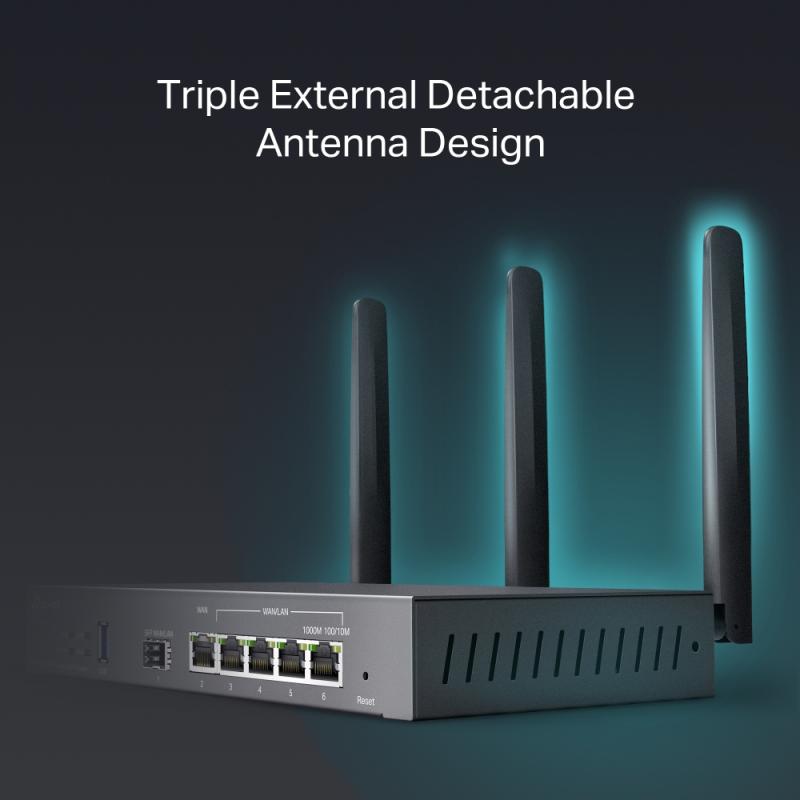

Antenna design

External

Antenna gain level (max)

4.5 dBi

Antennas quantity

3

Certification

CE, FCC, Rohs

Reset button

Yes

Wall mountable

Yes

Product colour

Black

Product type

Desktop/pole router

LED indicators

System, USB, WAN, WLAN

Ethernet LAN

Yes

Ethernet LAN interface type

Gigabit Ethernet

Ethernet LAN data rates

10,100,1000 Mbit/s

Internal memory type

DDR4

Internal memory

512 MB

Flash memory

128 MB

MU-MIMO technology

Yes

Universal Plug and Play (UPnP)

Yes

Web-based management

Yes

MIMO

Yes

Cabling technology

10/100/1000Base-T(X)

Port forwarding

Yes

Dynamic DNS (DDNS)

Yes

VPN tunnels quantity

50

Port triggering

Yes

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Storage relative humidity (H-H)

5 - 90%

Operating relative humidity (H-H)

10 - 90%

Manual

Yes

AC adapter included

Yes

Ethernet LAN (RJ-45) ports

4

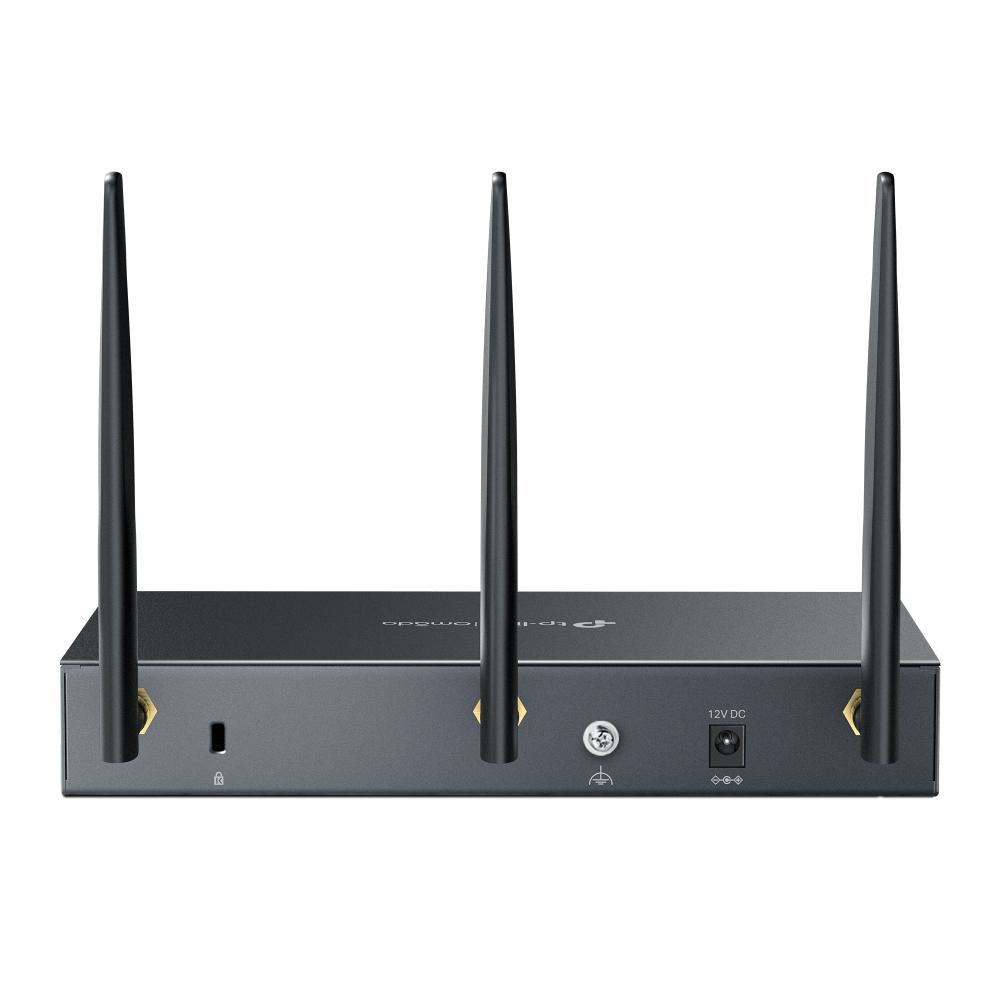

DC-in jack

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

Power source type

DC

Output voltage

12 V

Output current

2 A

Routing protocols

OSPF, RIP

DMZ support

Yes

DHCP server

Yes

Security algorithms

WPA, WPA2, WPA3-Enterprise

Schedule access

Yes

Filtering

Yes

Access Control List (ACL)

Yes

URL filtering

Yes

Network address translation (NAT)

Yes

Guest access

Yes

System event log

Yes

DSL WAN

No

SIM card slot

No

WAN connection type

SFP

3G/4G USB modem compatibility

Yes

Ethernet WAN

Yes

Height

35 mm

Width

226 mm

Depth

131 mm

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

WLAN data transfer rate (max)

3000 Mbit/s

WLAN data transfer rate (first band)

574 Mbit/s

WLAN data transfer rate (second band)

2402 Mbit/s

Additional-Slot

Slot-LAN/WAN

ADSL

No

WAN-Ports

1

WAN-Port-Type

Gigabit

LAN-Port-Type

Gigabit

LAN-Ports

4

Redundant-PSU

No
