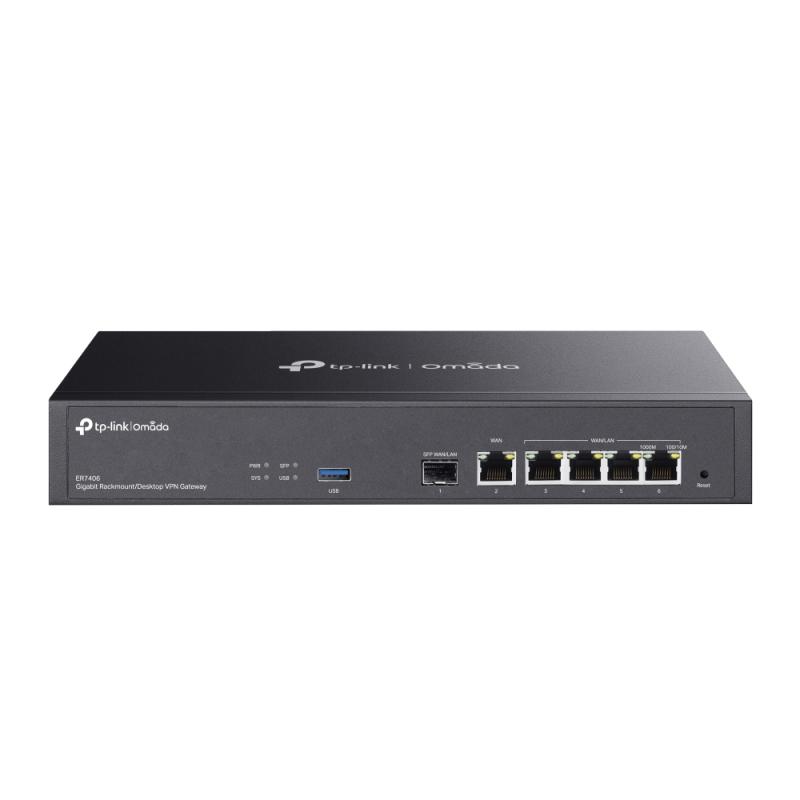

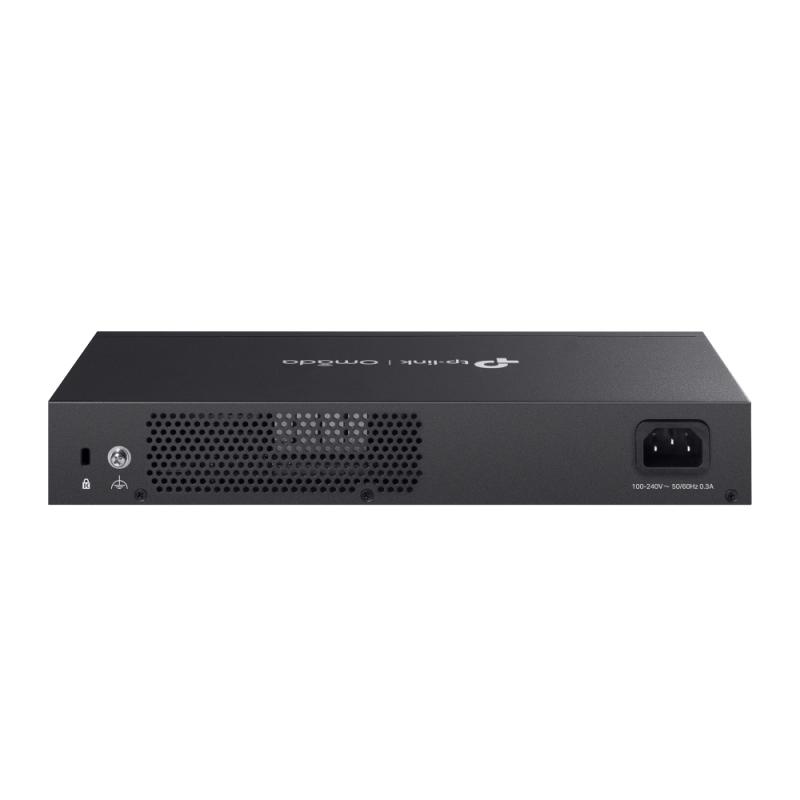

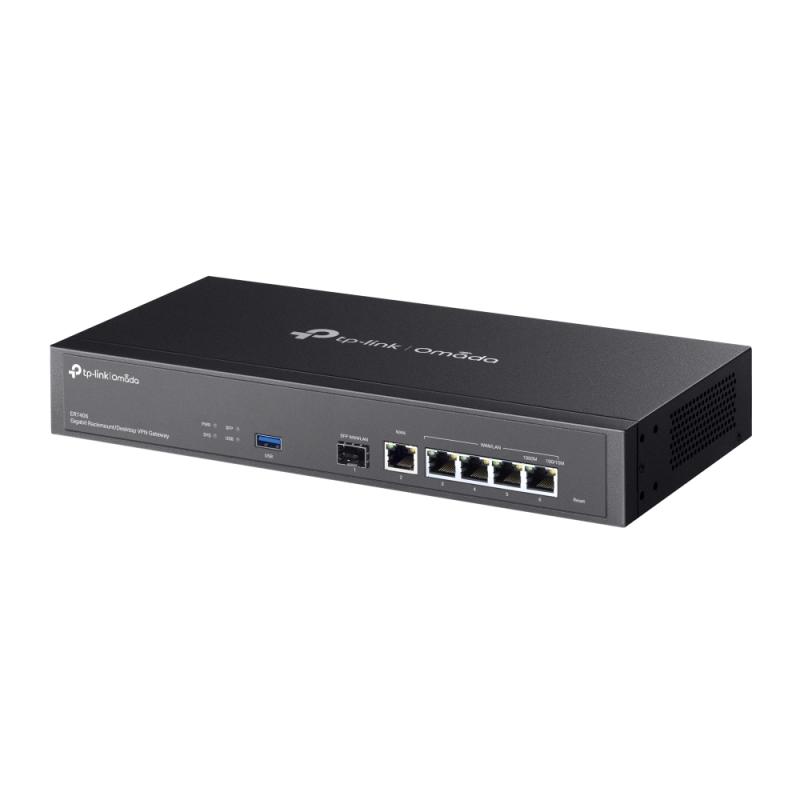

Omada Gigabit Rackmount/Desktop VPN Router PORT: 1× Gigabit SFP WAN/LAN Port, 1× Gigabit RJ45 WAN Port, 4× Gigabit WAN/LAN RJ45 Ports FEATURE: Integration with Omada SDN Controller, Support 100 IPsec VPN Tunnels, 50 PPTP/L2TP VPN Tunnels, 50 OpenVPN Tunnels, 150000 Concurrent Sessions, Load

"Omada Gigabit Rackmount/Desktop VPN Router PORT: 1× Gigabit SFP WAN/LAN Port, 1× Gigabit RJ45 WAN Port, 4× Gigabit WAN/LAN RJ45 Ports FEATURE: Integration with Omada SDN Controller, Support 100 IPsec VPN Tunnels, 50 PPTP/L2TP VPN Tunnels, 50 OpenVPN Tunnels, 150000 Concurrent Sessions, Load Balance, Link Backup, Policy-based Firewall, Static Routing, Policy Routing, Multi-net DHCP, Guest Portal, VLAN"

Compliance certificates

CE, Federal Communications Commission (FCC), RoHS

Product colour

Black

Rack mounting

Yes

Reset button

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Networking standards

IEEE 802.1D, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Internal memory

512 MB

Internal memory type

DDR4

Flash memory

128 MB

Mac operating systems supported

Yes

Linux operating systems supported

Yes

Web-based management

Yes

Static route

Yes

VPN tunnels quantity

50

VLAN support

Yes

Ethernet interface type

Gigabit Ethernet

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-40 - 70 °C

Storage relative humidity (H-H)

5 - 90%

Operating relative humidity (H-H)

10 - 90%

Cables included

AC

Quick installation guide

Yes

Installed SFP modules quantity

1

Ethernet LAN (RJ-45) ports

5

USB ports quantity

1

Power consumption (max)

7.5 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

DHCP server

Yes

DMZ support

Yes

DoS attack prevention

Yes

ARP attack prevention

Yes

URL filtering

Yes

Security algorithms

128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SHA-2, SHA-384, SHA-512

ICMP attack prevention

Yes

3G/4G USB modem compatibility

Yes

SFP WAN

Yes

DSL WAN

No

SIM card slot

No

Ethernet WAN

Yes

Height

44 mm

Depth

140 mm

Width

294 mm

Additional-Slot

Slot-LAN/WAN

ADSL

No

WAN-Ports

1

WAN-Port-Type

Gigabit

LAN-Port-Type

Gigabit

LAN-Ports

4

Redundant-PSU

No
