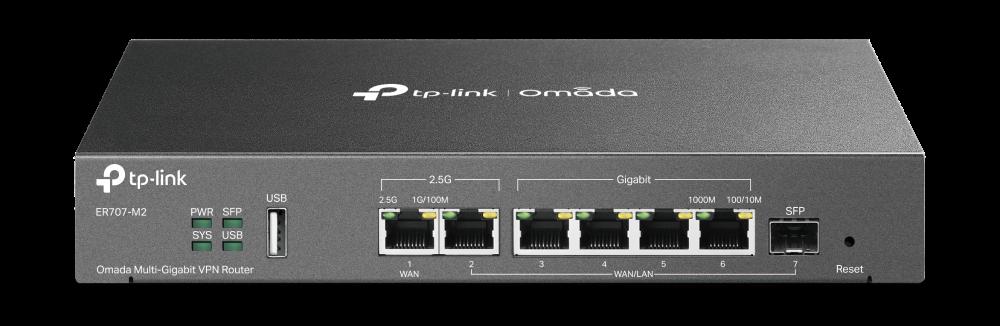

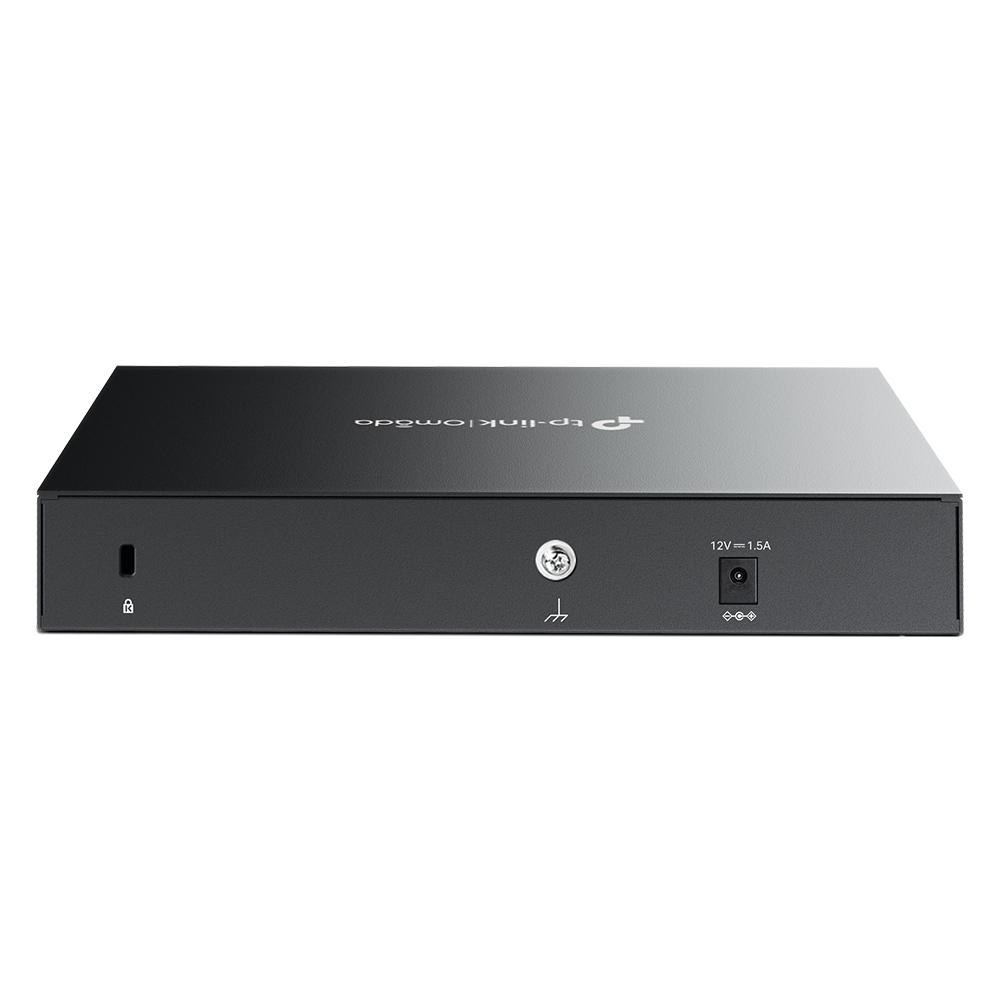

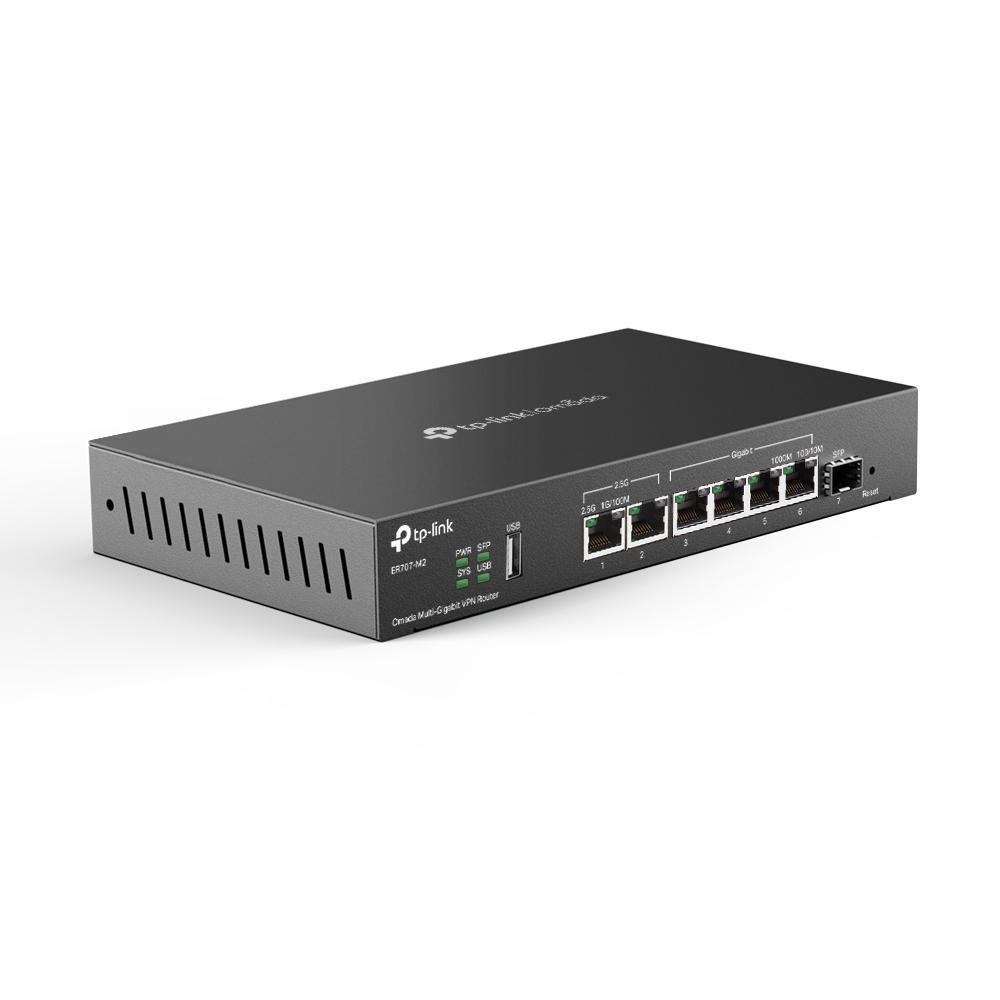

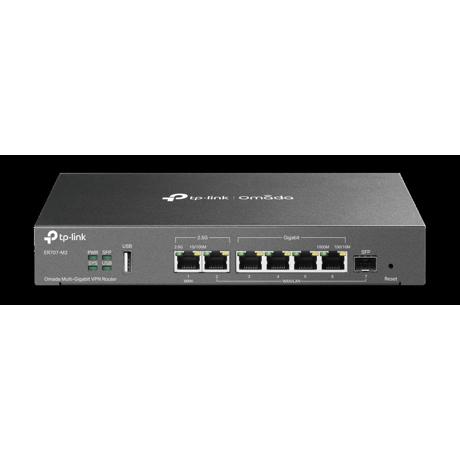

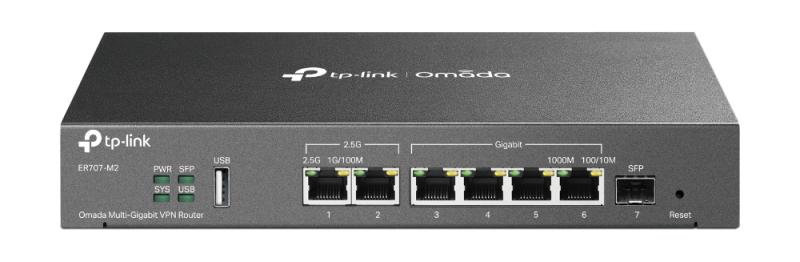

Omada Multi-Gigabit VPN Router PORT: 1× 2.5G RJ45 WAN Port, 1× 2.5G RJ45 WAN/LAN Port, 1× Gigabit SFP WAN/LAN Port, 4× Gigabit RJ45 WAN/LAN Ports, 1× USB 2.0 port FEATURE: Integration with Omada SDN Controller, Support SSL VPN, OpenVPN and IPsec/ PPTP/ L2TP/ L2TP over IPSec VPN, 500000 Concurrent

"Omada Multi-Gigabit VPN Router PORT: 1× 2.5G RJ45 WAN Port, 1× 2.5G RJ45 WAN/LAN Port, 1× Gigabit SFP WAN/LAN Port, 4× Gigabit RJ45 WAN/LAN Ports, 1× USB 2.0 port FEATURE: Integration with Omada SDN Controller, Support SSL VPN, OpenVPN and IPsec/ PPTP/ L2TP/ L2TP over IPSec VPN, 500000 Concurrent Sessions, Load Balance, Link Backup, 4G LTE Backup with USB Dongle, Policy-based Firewall, Static Routing, Policy Routing, Multi-net DHCP, Guest Portal, VLAN"

Sustainability compliance

Yes

Compliance certificates

CE, Federal Communications Commission (FCC), RoHS

Product colour

Black

Wall mountable

Yes

Reset button

Yes

Housing material

Steel

LED indicators

LAN, Link, Power, Speed, System, USB, WAN

Ethernet LAN data rates

10,100,1000,2500 Mbit/s

Networking standards

IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x

Flash memory

128 MB

Internal memory

1000 MB

Internal memory type

DDR4

Mac operating systems supported

Yes

Linux operating systems supported

Yes

Web-based management

Yes

Universal Plug and Play (UPnP)

Yes

Throughput

1.44 Gbit/s

VLAN support

Yes

Static route

Yes

Policy-based routing

Yes

Ethernet interface type

2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet

VPN tunnels quantity

66

Operating relative humidity (H-H)

10 - 90%

Operating temperature (T-T)

0 - 40 °C

Storage relative humidity (H-H)

5 - 90%

Storage temperature (T-T)

-40 - 70 °C

Quick installation guide

Yes

AC adapter included

Yes

Package depth

323 mm

Package weight

1.1 kg

Package width

242 mm

Package height

73 mm

Ethernet LAN (RJ-45) ports

6

WAN/Ethernet LAN ports quantity

6

Installed SFP modules quantity

1

WAN ports quantity

1

USB ports quantity

1

USB version

2.0

Power source type

DC

Output voltage

12 V

Output current

1.5 A

DHCP server

Yes

DMZ support

Yes

Supported network protocols

TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

DHCP client

Yes

Security algorithms

3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SNMP, SNMPv2, SNMPv3

ICMP attack prevention

Yes

Access Control List (ACL)

Yes

System event log

Yes

URL filtering

Yes

Network address translation (NAT)

Yes

SFP WAN

Yes

Ethernet WAN

Yes

Width

226 mm

Height

35 mm

Depth

131 mm

Additional-Slot

Slot-LAN/WAN

ADSL

No

WAN-Ports

2

WAN-Port-Type

Gigabit

LAN-Port-Type

Gigabit

LAN-Ports

4

Redundant-PSU

No
